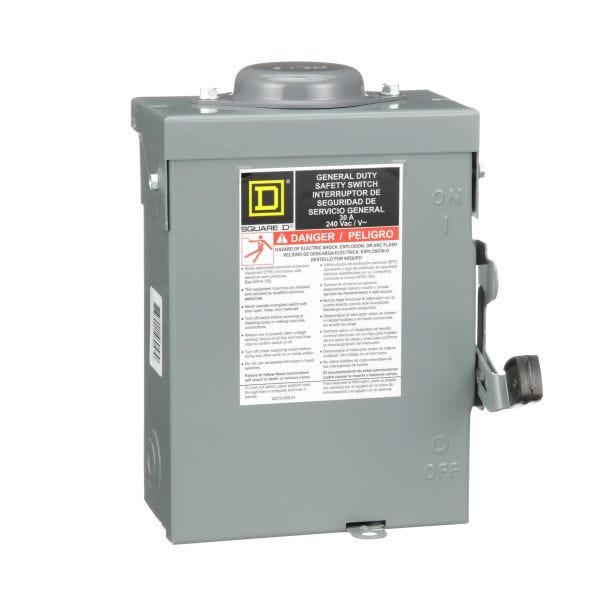

Square D D221NRB
30A NEMA3R FUSIBLE DISCO
SKU
608891
Square D™, D221NRB, Safety Switch, Fusible General Duty Iceproof Rainproof, Series: E3 Series, 240 VAC, 30 A, 3 hp, 1 ph, 50/60 Hz Frequency, 2 Pole, 3 Wires, 100 kA Short Circuit, TPST Contact Form, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, Lug Terminal, 7.25 in W x 3.75 in D x 9.63 in H Dimensions, Steel, Hot Dipped Galvanized
- D221NRB is a General Duty Safety Switch Fusible 240V 30A 2P NEMA3R with a 30A rated current
- This product is a Single Throw Safety Switch with a NEMA 3R rating This switch has a 100 kA current rating and complies to UL listed Standards
- Horsepower rated for motor applications
- Tangential knockout alleviate the need for offset bends
- Spring reinforced, plated copper fuse clips
- Insulated, bonded solid neutral assemblies are standard in fusible switches
- Visible blades
- Quick-make and quick-break operating mechanism
- Cover padlock hasp and handle lock-off
- Enclosures are finished in gray, baked enamel that is electrodeposited on cleaned, phosphatized steel
- Rainproof and sleet/ice proof
- Indoor/outdoor environmental conditions
| Material | Steel |
|---|---|
| Series | E3 Series |
| Dimensions | 7.25 in W x 3.75 in D x 9.63 in H |
| Number of Poles | 2 |
| Short Circuit Current Rating | 100 kA |
| Actuator Type | Handle |
| Frequency Rating | 50/60 Hz |
| Enclosure Type | NEMA 3R |
| Phase | 1 ph |
| Mounting Type | Surface |
| Type | Fusible General Duty Iceproof Rainproof |
| Contact Form | TPST |
| Voltage Rating | 240 VAC |
| Finish | Hot Dipped Galvanized |
| Horsepower | 3 hp |
| Amperage Rating | 30 A |
| Number of Wires | 3 |
| Terminal Type | Lug |
| Brand | Square D Co |
