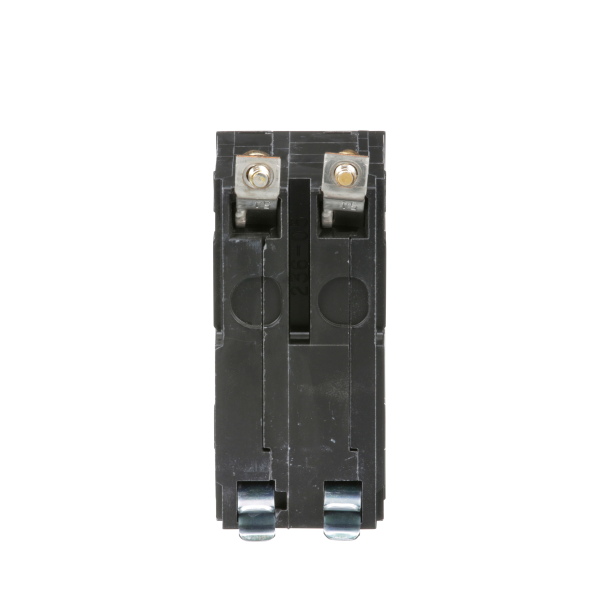

Schneider Electric QOB250
41698 MINI CKT BRKR 50A 2P
SKU
605800
Square D™, QOB250, Miniature Circuit Breaker, Standard, 120/240 VAC, 50 A, 50/60 Hz Frequency, 10 kA Interrupt, QOB Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph, Box Lug Connection, 8 to 2 AWG Wire, Bolt-On Mounting, 104 deg F, 2.91 in L x 1.5 in W x 3 in H Dimensions
- Tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
- Bolt-on QOB circuit breakers are for use in NQO and NQOD panel boards
- QO™ and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit
- Common trip
- 10 kA at 120/240 VAC, 5 kA at 48 VDC interrupt rating
- 8 to 2 AWG Al/Cu wire
- Standard
| Phase | 1 ph |
|---|---|
| Wire Size | 8 to 2 AWG |
| Type | Standard |
| Frequency Rating | 50/60 Hz |
| Temperature Rating | 104 deg F |
| Frame | QOB |
| Number of Poles | 2 |
| Connection Type | Box Lug |
| Mounting Type | Bolt-On |
| Dimensions | 2.91 in L x 1.5 in W x 3 in H |
| Interrupt Rating | 10 kA |
| Amperage Rating | 50 A |
| Trip Type | Thermal/Magnetic |
| Voltage Rating | 120/240 VAC |
| Brand | Square D Co |
