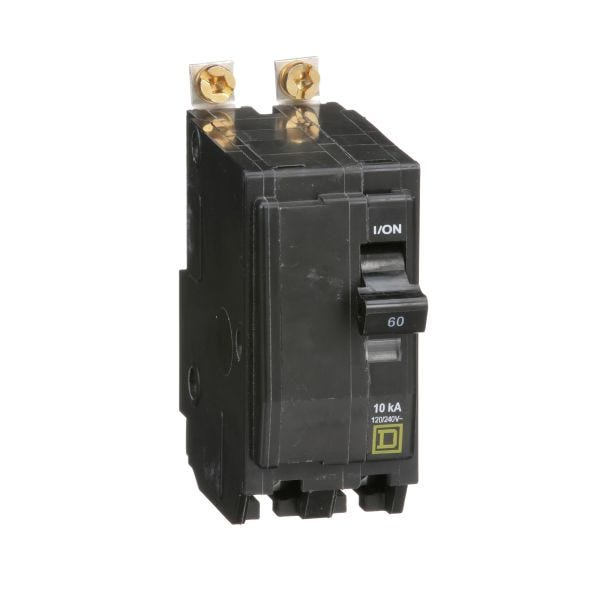

Schneider Electric QOB260
41702 MINI CKT BRKR 60A 2P
SKU
605802
Square D™, QOB260, Miniature Circuit Breaker, Standard, 120/240 VAC, 60 A, 50/60 Hz Frequency, 10 kA Interrupt, QOB Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph, Box Lug Connection, 8 to 2 AWG Wire, Bolt-On Mounting, 40 deg C, 2.91 in L x 1.5 in W x 3.12 in H Dimensions
- Bolt-on QOB circuit breakers are for use in NQO and NQOD panel boards
- QO™ and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit
- 10 kA at 120/240 VAC, 5 kA at 48 VDC interrupt rating
- 8 to 2 AWG aluminum/copper wire
- QO and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication
- The tripping mechanisms in two-and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
- Common trip
- Standard
| Phase | 1 ph |
|---|---|
| Wire Size | 8 to 2 AWG |
| Type | Standard |
| Frequency Rating | 50/60 Hz |
| Temperature Rating | 40 deg C |
| Frame | QOB |
| Number of Poles | 2 |
| Connection Type | Box Lug |
| Mounting Type | Bolt-On |
| Dimensions | 2.91 in L x 1.5 in W x 3.12 in H |
| Interrupt Rating | 10 kA |
| Amperage Rating | 60 A |
| Trip Type | Thermal/Magnetic |
| Voltage Rating | 120/240 VAC |
| Brand | Square D Co |
