Siemens W0816ML1125CU
125A 1PH RESI ML LOADCENTER
SKU
708673

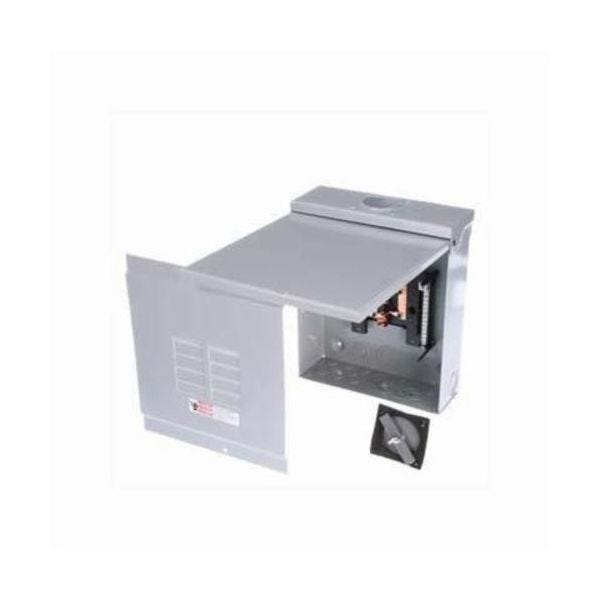

Siemens EQ® Single Phase Main Lug Load Center, 120/240 VAC, 125 A, 4 Pole, 100000 A Interrupt, 16 Circuits, QP Breaker, Plug-In Breaker Mounting, 3-Wire Wiring Configuration, 125 A Bus Rating, 8 Spaces, 4 to 2/0 AWG Wire, Surface Mount, NEMA 3R Enclosure, 14-3/4 in H x 12-1/8 in W x 4-1/4 in D Dimensions
- Interiors offer removal in sec
- 1-piece busbar construction designed for use only with circuit breakers
- Positive load side circuit breaker hookrails
- With copper bus
- Suitable for use as service entrance equipment when a main breaker (125 A maximum) is back-fed in a branch position and used with main breaker retainer clip
- 4 to 2/0 AWG aluminum/copper wire
| Wiring Configuration | 3-Wire |
|---|---|
| Number of Circuits | 16 |
| Enclosure Type | NEMA 3R |
| Bus Rating | 125 A |
| Number of Spaces | 8 |
| Wire Size | 4 to 2/0 AWG |
| Mounting Type | Surface |
| Number of Poles | 4 |
| Interrupt Rating | 100000 A |
| Amperage Rating | 125 A |
| Breaker Mounting | Plug-In |
| Voltage Rating | 120/240 VAC |
| Breaker Type | QP |
| Dimensions | 14-3/4 in H x 12-1/8 in W x 4-1/4 in D |
| Brand | Siemens Ind |
