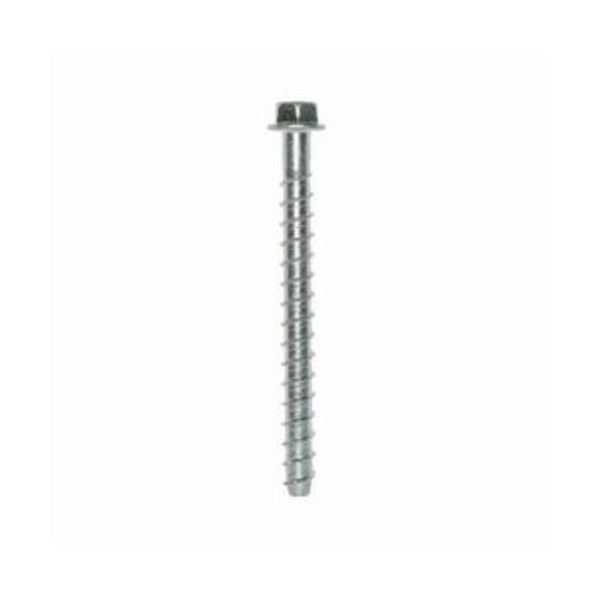

Simpson Strong-Tie THD37500H
TITEN HD 3/8X5 SCREW HEX
SKU
620742
Simpson Strong-Tie® Screw Anchor, Heavy Duty, Series: Titen HD®, 3/8 in Diameter, 5 in Overall Length, Hex Washer Head Drive, Carbon Steel, 2-1/2 in Minimum Embedment Depth, 3/8 in Drill, Zinc Plated, Applicable Materials: Concrete/Masonry, 9/16 in Head, 5 in Maximum Work Thickness, 4460 lb Shear Strength, 10890 lb Tensile Strength
- Code listed under IBC/IRC in accordance with ICC-ES AC193 for cracked and uncracked concrete per ICC-ES ESR-2713
- Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional size
- Specialized heat treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required, designed to install using standard-sized ANSI tolerance drill bits
- Testing shows the Titen HD® installs in concrete with 50% less torque than competitor anchors
- Hex washer head requires no separate washer and provides a clean installed appearance
- Removable - ideal for temporary anchoring or applications where fixtures may need to be moved
- 1/2 in Dia baseplate clearance hole
- 50 ft-lb maximum installation torque
- 2-3/4 in D minimum hole
- 1-3/4 in minimum edge distance
- 3 in minimum spacing
- 97000 psi yield strength
| Diameter | 3/8 in |
|---|---|
| Type | Heavy Duty |
| Maximum Work Thickness | 5 in |
| Overall Length | 5 in |
| Head Size | 9/16 in |
| Applicable Materials | Concrete/Masonry |
| Tensile Strength | 10890 lb |
| Shear Strength | 4460 lb |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Minimum Embedment Depth | 2-1/2 in |
| Series | Titen HD® |
| Drill Size | 3/8 in |
| Head Drive Type | Hex Washer |
| Brand | Simpson Strong-Tie |
