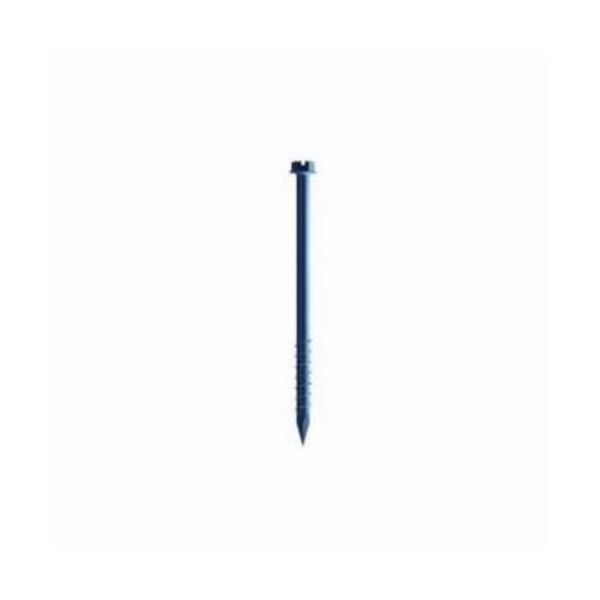

Simpson Strong-Tie TTN25400H
1/4 X 4" HEX TAPCON SOLD/BOX
SKU
549304
Simpson Strong-Tie® Screw Anchor, Series: Titen®, 1/4 in Diameter, 4 in Overall Length, Hex Head Drive, Carbon Steel, 1 in Minimum Embedment Depth, 3/16 in Drill, Zinc Plated, Applicable Materials: Concrete/Masonry, 250 lb Shear Strength, 150 lb Tensile Strength
- Blue color
- 1242 lb ultimate shear load
- 740 lb ultimate tension load
- 1-1/2 in critical edge distance
- 3 in critical spacing
- Zinc plated with a baked on ceramic
| Diameter | 1/4 in |
|---|---|
| Overall Length | 4 in |
| Applicable Materials | Concrete/Masonry |
| Tensile Strength | 150 lb |
| Shear Strength | 250 lb |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Minimum Embedment Depth | 1 in |
| Series | Titen® |
| Drill Size | 3/16 in |
| Head Drive Type | Hex |
| Brand | Simpson Strong-Tie |
