Simpson Strong-Tie WA16000

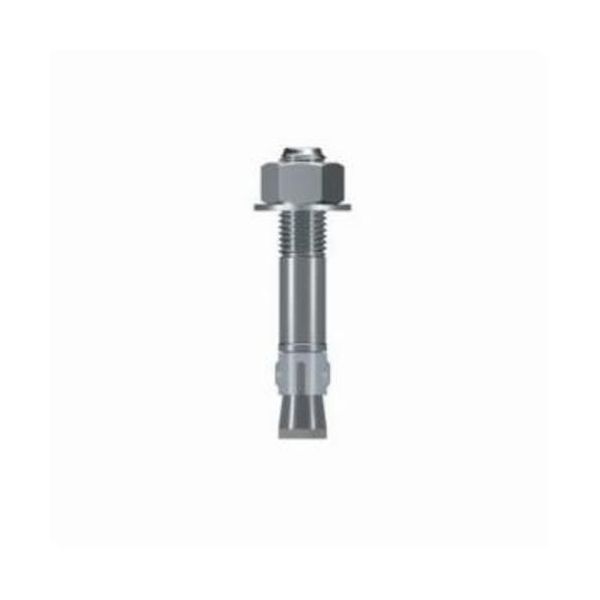

Simpson Strong-Tie® Wedge Anchor, Series: Wedge-All®, 1 in Dia, 6 in Overall Length, 2-1/4 in Thread Length, Carbon Steel, Zinc Plated, 4-1/2 in Minimum Embedment Depth, 1 in Drill, 1-1/2 in Head, 1156 lb Shear Strength, 2440 lb Tensile

• Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
• One-piece, wrap-around clip ensures uniform holding capacity
• Threaded end is chamfered for ease of starting nut
• Available in a wide range of diameters and lengths
• Carbon steel ASTM A563 grade A nut
• The minimum concrete thickness is 1-1/2 times the embedment depth
• The allowable loads are based on a safety factor of 4
• 1-1/8 in minimum fixture hole
• 300 ft-lb installation torque
• 15400 lb at 2000 psi/15680 lb at 4000 psi ultimate tension loads and 3850 lb at 2000 psi, 3885 lb at 3000 psi, 3920 lb at 4000 psi for concrete
• 22519 lb ultimate and 5730 lb allowable shear loads at 2000 psi for concrete
• Anchor body material meets minimum 70000 psi tensile strength
