Simpson Strong-Tie ZN25114
2814 1/4X1-1/4 ZAM NAILON ANCH
SKU
657270

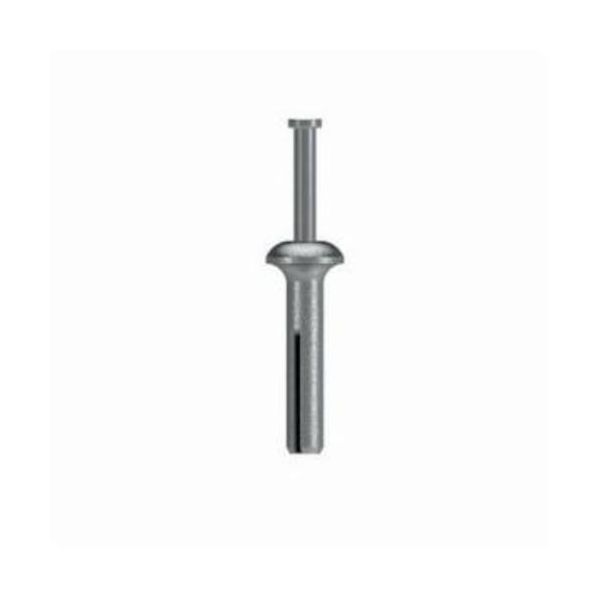

Simpson Strong-Tie® Drive Pin Anchor, Series: Nailon™, 1/4 in Dia, 1-1/4 in Overall Length, Die-Cast Zamak 3 Alloy Body Shell, Carbon Steel Pin, Mushroom Head, 1/4 in Drill, 5/8 in, 3/4 in, 1-1/2 in Minimum Embedment Depth, 160 lb/190 lb/265 lb at 3000 psi Shear Strength, 150 lb, 195 lb, 265 lb at 3000 psi Tensile, Zinc Plated
- Zinc Nailon™ anchors are low cost, easy-to-install anchors for applications under static loads
- Pin and head configuration designed to make anchor tamper resistant
- Carbon steel pin
- The allowable loads are based on a safety factor of 4
- 590 lb/780 lb/1050 lb ultimate tension load at 3000 psi for concrete
- 635 lb/765 lb/1050 lb ultimate shear load at 3000 psi for concrete
- 2600 to 2700 deg F freezing/melting point
| Series | Nailon™ |
|---|---|
| Tensile Strength | 150 lb, 195 lb, 265 lb at 3000 psi |
| Diameter | 1/4 in |
| Overall Length | 1-1/4 in |
| Finish | Zinc Plated |
| Pin Material | Carbon Steel |
| Shear Strength | 160 lb/190 lb/265 lb at 3000 psi |
| Minimum Embedment Depth | 5/8 in, 3/4 in, 1-1/2 in |
| Drill Size | 1/4 in |
| Body Shell Material | Die-Cast Zamak 3 Alloy |
| Head Type | Mushroom Head |
| Brand | Simpson Strong-Tie |
