Sioux Chief 632-C263
1/2 CPVC X SWEAT COPPER 6
SKU
285096

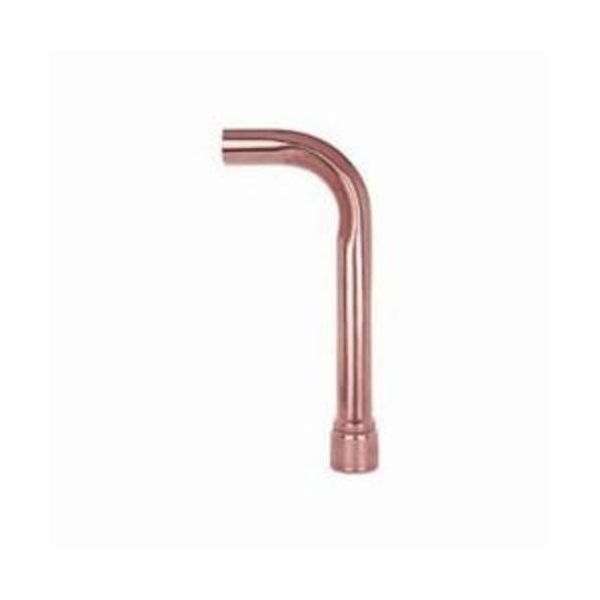

Sioux Chief MetalHead™ Tub/Shower Pressure Connector, Series: 632, Adapter Fitting/Connector, 1/2 in Nominal, CPVC Socket x Male C Elbow End Style, Copper, 6 in L x 2-1/4 in W Dimensions, Domestic
- DO NOT use pipe dope on FIP swivel threads
- Do not allow CPVC portion of fitting to be heated
- MIP and FIP swivel connections mean no more torch at the tub/shower valve
- 1-1/4 in radius bend for decreased turbulent flow and noise
- Elongated tailpiece allows for rigid bracket attachment
- Use Caution when soldering Whenever possible, solder with CPVC socket facing downward
- If CPVC joint is above solder joint, plug temporarily with nipple and cap to prevent chimney effect
- Always apply torch to valve, not to the fitting
- Use a commercial heat blocking agent between solder joint and CPVC joint
| End Style | CPVC Socket x Male C Elbow |
|---|---|
| Domestic/Import | Domestic |
| Series | 632 |
| Fitting/Connector Type | Adapter |
| Material | Copper |
| Nominal Size | 1/2 in |
| Dimensions | 6 in L x 2-1/4 in W |
| Brand | Sioux Chief |
