SPIROTHERM VDX125FT
1-1/4" FPT QUAD AIR/DIRT/HYDR
SKU
526296
SPIROTHERM® Spirovent® Microbubble™ Hydraulic Separator, Series: Quad VDX, 1-1/4 in Nominal, FNPT, 150 psig Working, 270 deg F, 15 gpm, Brass, 3-1/8 in Dia x 8-5/8 in W x 20-1/4 in H, Domestic
- Factory-installed integral, serviceable air vent
- Blow down valve included with every Quad
- Gasketed union tailpiece
- Integral brass, float-operated venting mechanism with FKM seal
- No bypass, isolating valves or replacement filters to clog and reduce flow
- Two full-flow operating functions plus hydraulic balance in a low loss header
- Dirt can be flushed while the system is in full operation
- Quiet operation
- Minimum pressure drop, always constant
- Increased component life
- Reduced oxygen-based corrosion and pump cavitation
- Provides optimum heat transfer
- Brass vent head
- Non-ferrous float
- FKM seal and O-ring
- Copper coalescing medium
| Domestic/Import | Domestic |
|---|---|
| Nominal Size | 1-1/4 in |
| Working Pressure | 150 psig |
| Flow Rate | 15 gpm |

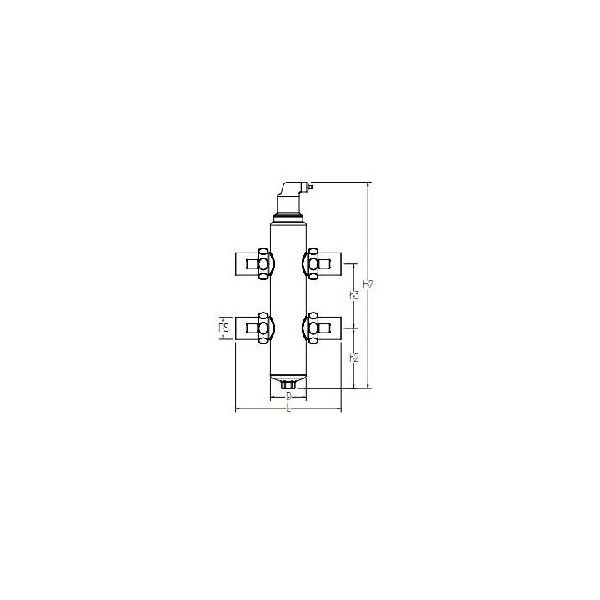

| Dimensions | 3-1/8 in Dia x 8-5/8 in W x 20-1/4 in H |
| Material | Brass |
| Connection Type | FNPT |
| Temperature Rating | 270 deg F |
| Series | Quad VDX |
| Brand | Spirotherm |
