Irwin 322004
3/16X4X6 DRL BIT SDS PLUS
SKU
524094

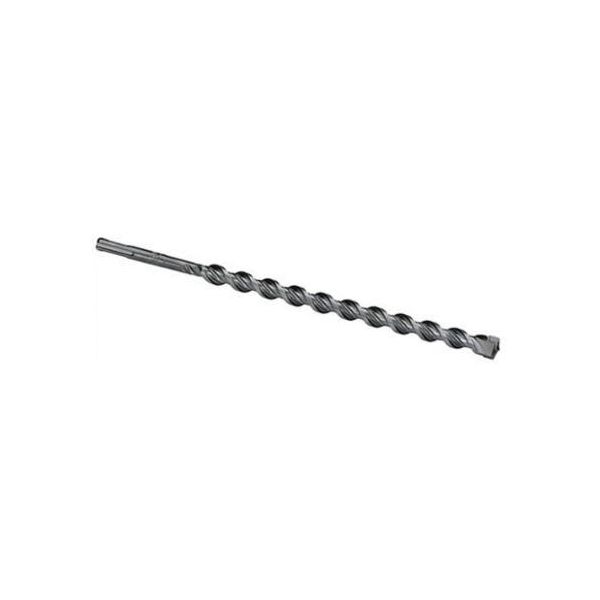

Irwin® Hammer Drill Bit, 2-Cutter, Series: SpeedHammer™ Plus, 3/16 in Drill Bit, Drilling, 6 in Overall Length, 4 in Cutting Depth, 1 Flutes, Spiral Flute, 4 in Flute Length, 3/16 in Shank, SDS-Plus®/Straight Shank, Standard Point, Right Hand Cutting Direction, Carbide Cutting Edge, Chrome Vanadium Spring Steel, Applicable Materials: Masonry
- Fits all SDS-Plus® and Hilti TE-C rotary hammers
- The chrome vanadium spring steel shaft is hardened to 50 to 53 HRC to extend the life of the bit
- Reduced area above the flute prevents the drill bit from binding while drilling the full usable length can be utilized
- Patented tip and flute design removes dust more efficiently up to 25% faster than other bits
- Shot peened, double tempered finish reduces breakage
- Hot isostatically pressed to extend life and resist breakage
- Copper braze material gives high heat resistance for reduced tip loss
- Patented carbide tip design cuts fast and is self-centering for simple, controlled starts
- Short drilling head forces debris into flute for faster penetration speed and extended bit life and reduces breakout when drilling through holes
- Unique flute design clears debris quickly, reducing clogging, minimizing vibration and increasing overall drilling speed and bit life
| Overall Length | 6 in |
|---|---|
| Cutting Direction | Right Hand |
| Cutting Depth | 4 in |
| Shank Size | 3/16 in |
| Applicable Materials | Masonry |
| Flute Type | Spiral |
| Flute Length | 4 in |
| Material | Chrome Vanadium Spring Steel |
| Point Type | Standard |
| Drill Bit Function | Drilling |
| Number of Flutes | 1 |
| Cutting Edge Material | Carbide |
| Drill Bit Size | 3/16 in |
| Shank Type | SDS-Plus®/Straight |
| Type | 2-Cutter |
| Series | SpeedHammer™ Plus |
| Brand | Irwin |
