State Industries 100211122
30 GAL ELECT LOW BOY W/BLNKT
SKU
653088

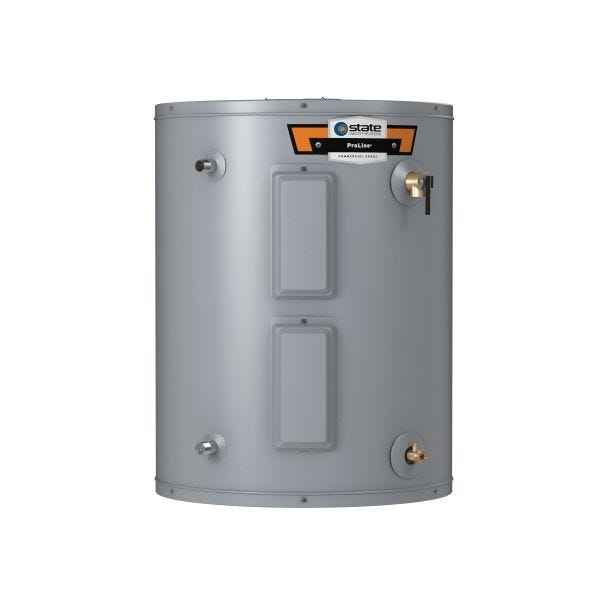

State Industries Specialty Electric Water Heater, Lowboy, Series: ProLine®, 28 gal Tank, 240 VAC, 9000 W, 1 ph, 1/2 in NPT Water Connection, (2) Copper/Incoloy® Heating Element, 0.9 Energy Factor, Side Mount, 21 gph at 90 deg F Rise Recovery, 150 psi, ASME Yes/No: No, 22 in Dia x 30 in H
- Convenient flat porcelain surface at 36 in H, providing extra counter space wherever installed, all plumbing and electrical connections are made through the back of the water heater, this heater is equipped with a PEX cross-linked polymer dip tube
- Designed for low-demand, such as office lavatories or buildings with remote restrooms
- Blue Diamond® glass coating - Provides superior corrosion resistance compared to industry standard glass lining
- Our standard residential water heaters have a solid brass, tamper-resistant, enhanced flow, ball type, drain valve
- Certified at 300 psi test pressure and 150 psi working pressure
- Listed according to UL 174 standards governing storage tank-type electric water heaters
- 1 ph 60 Hz 2 wire water heater
| Mounting Type | Side |
|---|---|
| Power Rating | 9000 W |
| Recovery Rate | 21 gph at 90 deg F Rise |
| Dimensions | 22 in Dia x 30 in H |
| Phase | 1 ph |
| Voltage Rating | 240 VAC |
| Pressure Rating | 150 psi |
| Energy Factor | 0.9 |
| Series | ProLine® |
| Type | Lowboy |
| Heating Element | (2) Copper/Incoloy® |
| ASME Yes/No | No |
| Water Connection | 1/2 in NPT |
| Tank Capacity | 28 gal |
| Brand | State |
