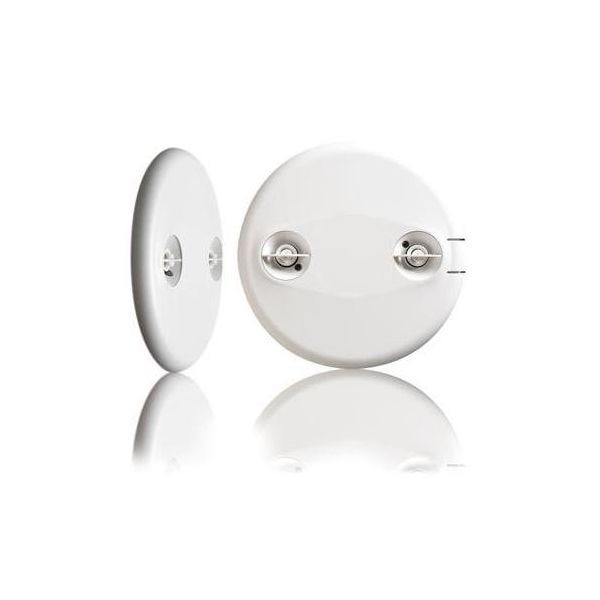

WattStopper UT3051

WattStopper® Ceiling Mount Occupancy Sensor, Low Profile Low Voltage, Series: UT-305, 24 VAC/VDC, 30 mA, Ultrasonic Sensor, 500 sq-ft Coverage, 360 deg Viewing, 5 to 30 min Time Delay, LED Lamp, 40 kHz Response, Flying Lead Connection, Automatic On/Automatic Off Control Output, Ceiling Mounting, 35 deg C, Plastic, White, 4-1/2 in Dia x 1 in D Dimensions

• 95% RH, non-condensing, for indoor use only environmental conditions
• WattStopper® UT-300 ultrasonic ceiling sensors automatically turn lighting on and off based on occupancy
• The sensor mounts on the ceiling with a flat, low profile appearance and provides 360 deg of coverage
• Advanced signal processing eliminates false triggers and provides immunity to RFI and EMI
• Walk through mode turns lights off 3 min after the area is initially occupied - ideal for brief visits such as mail delivery
• Dip switch simplifies sensor adjustments
• Patented ultrasonic diffusion technology spreads coverage to a wider area
• UT-300 Series sensors work with low voltage momentary switches for manual control
• Clip mounting system makes ceiling tile installation simple
• Uses plug terminal wiring system for quick and easy installation
• 1 A at 30 VAC/VDC load rating
• Ceiling sensors automatically turn lighting on and off based on occupancy
• The sensors mount on the ceiling with a flat, unobtrusive appearance
• 95% RH, non-condensing, for indoor use only
