WATTS 0122695
3/4 LF009M3-QT-S-FS RPZ
SKU
546177

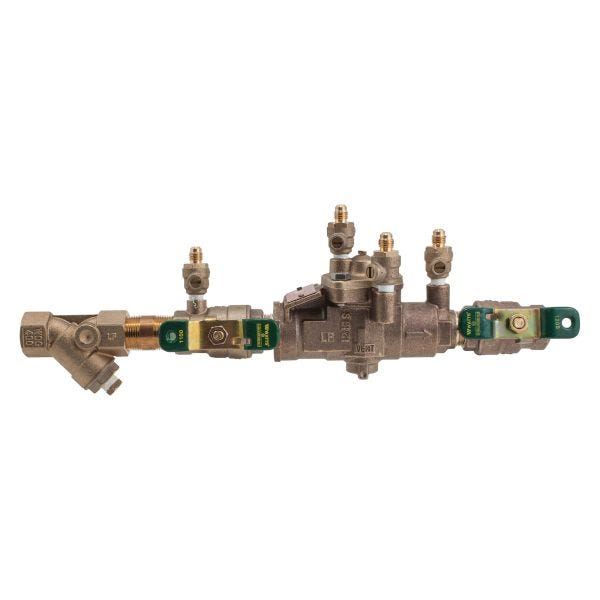

WATTS® Reduced Pressure Zone Assembly, Series: LF009, 3/4 in Nominal, NPT, 175 psi, 33 to 180 deg F, Quarter-Turn Ball Valve, Full Port, Cast Copper Silicon Alloy Body, 10-3/4 in L, Domestic
- Lead-free bronze body construction for durability
- Quarter-turn full port resilient seated ball valve shutoffs
- Single access cover and modular check construction for easy of maintenance
- Top entry all internals immediately accessible
- Captured spring assemblies for safety
- Internal relief valve for reduced installation clearances
- Replaceable seats for economical repair
- Large body passages provides low pressure drop
- Compact space saving design
- Cast copper silicon alloy body construction for durability
| Body Material | Cast Copper Silicon Alloy |
|---|---|
| Ball Valve/Gate Valve Type | Quarter-Turn Ball Valve |
| Nominal Size | 3/4 in |
| Port Type | Full |
| Domestic/Import | Domestic |
| Pressure Rating | 175 psi |
| Dimensions | 10-3/4 in L |
| Series | LF009 |
| Temperature Rating | 33 to 180 deg F |
| End Style | NPT |
| Brand | Watts |
