WATTS 0625502
LF 3 C/I WAFER DD SILENT CHK VLV
SKU
378444

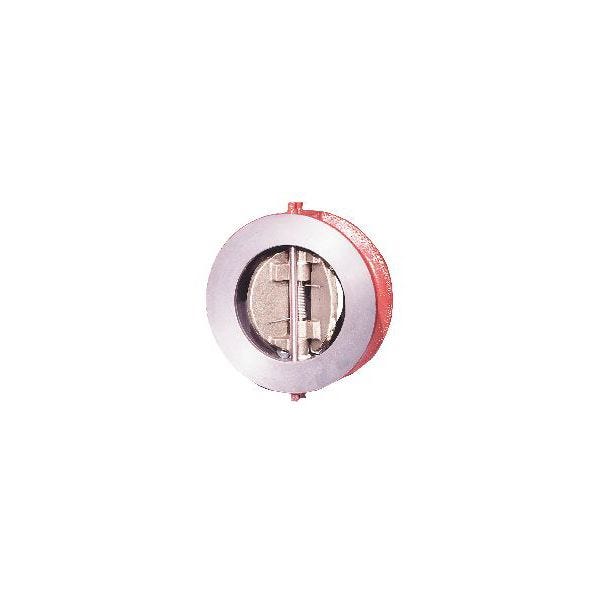

WATTS®, 0625502, Silent Check Valve, Series: ICV, 3 in Nominal, Wafer End Style, 200 psi CWP Pressure, 125 lb Pressure Class, -40 to 250 deg F, 180 gpm Flow Rate, 2-5/8 in Inlet to Outlet Length, Cast Iron Body, Aluminum Bronze/Buna-N Trim, 5-3/4 in L Dimensions, Import
- PTFE bearings
- Lightweight and compact design
- EPDM seat bonded to body for leak tight sealing
- Aluminum bronze disc plate/Buna-N seat
| Flow Rate | 180 gpm |
|---|---|
| Pressure Class | 125 lb |
| End Style | Wafer |
| Temperature Rating | -40 to 250 deg F |
| Inlet to Outlet Length | 2-5/8 in |
| Domestic/Import | Import |
| Dimensions | 5-3/4 in L |
| Trim Material | Aluminum Bronze/Buna-N |
| Pressure Rating | 200 psi CWP |
| Nominal Size | 3 in |
| Series | ICV |
| Body Material | Cast Iron |
| Brand | Watts |
