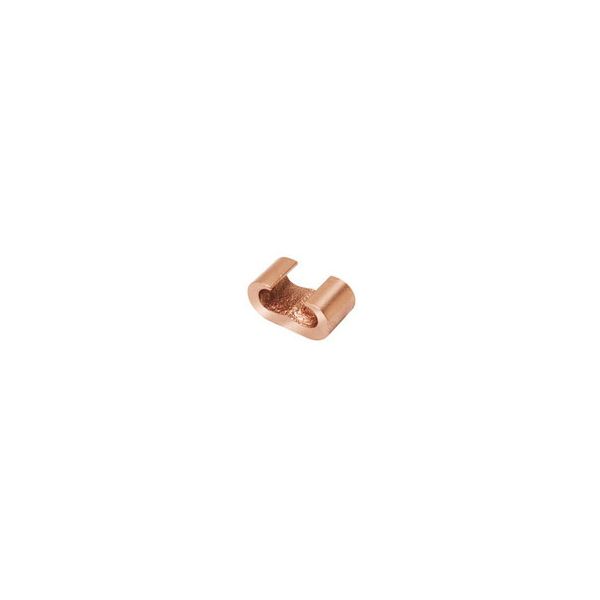

BURNDY YGC6C6
COMPRESSION C-CRIMP CONNECTOR
SKU
901127
BURNDY® CRIMPIT™ HYGROUND® Compression Tap Connector, Type YGC, 6 AWG Maximum Run/Tap, Figure C, Stranded Copper/Solid Conductor, Copper, Unplated, 0.62 in L x 0.76 in H
- Acceptable for direct burial in earth and concrete
- Prefilled with PENETROX E2 oxide inhibitor
- BG index number
- Number of crimps MD6, MD7 Tool, WBG Die, (2), OUR840 tool, XBG die
| Dimensions | 0.62 in L x 0.76 in H |
|---|---|
| Maximum Run/Tap | 6 AWG |
| Shape | Figure C |
| Maximum Run/Tap | 6 AWG |
| Conductor Type | Stranded Copper/Solid |
| Material | Copper |
| Type | Type YGC |
| Finish | Unplated |
| Brand | Burndy LLC |
| Splices | Compression Splices |
