Parker Hannifin 770607

ZL 1-1/8 LR ELBOW
SKU
645371
The product cannot be delivered by Truck Shipping

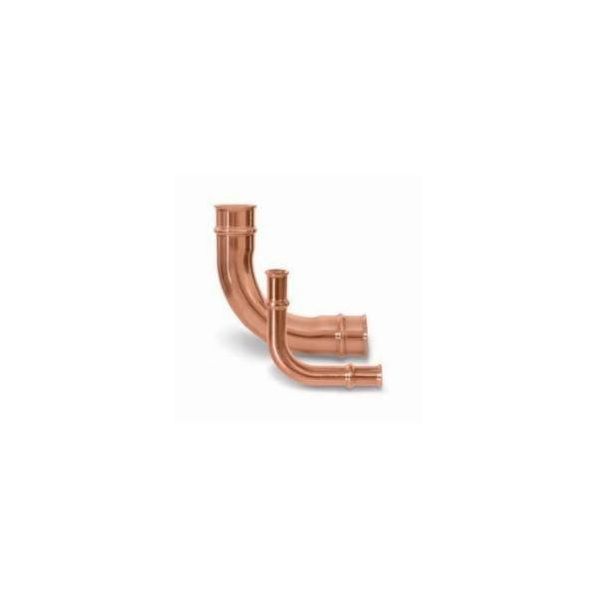

Parker® ZoomLock™ Elbow, Braze-Free Long Radius, Fitting/Connector Type: 90 deg Elbow, 1-1/8 Nominal, Tube, 700, -40 to 300, Copper, 1.14 in ID x 1.29 in OD x 3.7 in L, Domestic

  • Less equipment and no gas needed
  • Safer conditions, no fire hazards
  • No hot work permits required
  • More environmentally friendly
  • No solder related quality issues, more flexible access to job sites and no need to nitrogen purge
  • No need to nitrogen purge
  • Mineral oil, POE, PVE, PAG oil compatibility, copper to copper connections, hard copper (drawn), soft copper (annealed)
  • 1234YF, 1234ZE, 125, 32, 134A, 143A, 404A, 407A, 407C, 407F, 410A, 438A, 447A, 448A, 449A, 450A, 452A, 507, 513A are approved refrigerants
  • 1-1/4 in insertion D
  • 20 micron vacuum pressure
  • 3000 psi burst pressure
  • Copper body, HNBR o-ring
More Information
Fitting/Connector Type 90 deg Elbow
Nominal Size 1-1/8 in
Temperature Rating -40 to 300 deg F
End Style Tube
Pressure Rating 700 psi
Domestic/Import Domestic
Dimensions 1.14 in ID x 1.29 in OD x 3.7 in L
Material Copper
Type Braze-Free Long Radius
Brand Zoomlock
