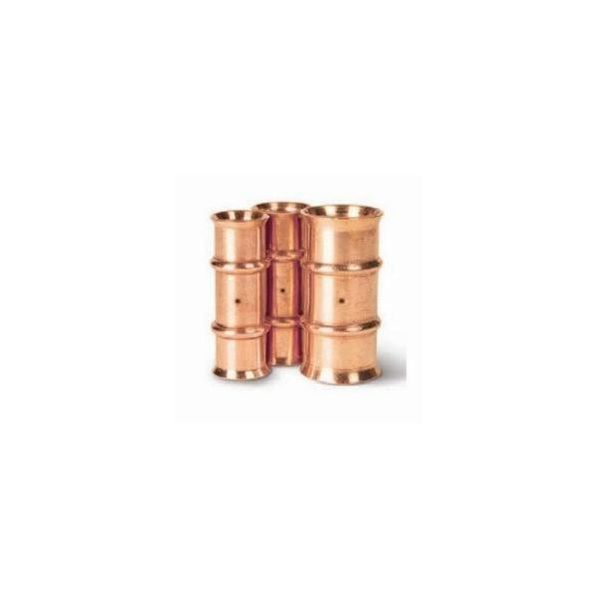

Parker Hannifin 770503
ZL 1/2" COUPLING
SKU
645359
Parker® ZoomLock™ Coupling, Braze-Free, Fitting/Connector Type: Coupling, 1/2 in Nominal, Tube, 700 psi, -40 to 300 deg F, Copper, 0.51 in ID x 0.59 in OD x 5.8 in L, Domestic
- Less equipment and no gas needed
- Safer conditions, no fire hazards
- No hot work permits required
- More environmentally friendly
- No solder related quality issues, more flexible access to job sites and no need to nitrogen purge
- No need to nitrogen purge
- Mineral oil, POE, PVE, PAG oil compatibility, copper to copper connections, hard copper (drawn), soft copper (annealed)
- 1234YF, 1234ZE, 125, 32, 134A, 143A, 404A, 407A, 407C, 407F, 410A, 438A, 447A, 448A, 449A, 450A, 452A, 507, 513A are approved refrigerants
- 1-1/4 in insertion depth
- 20 micron vacuum pressure
- 3000 psi burst pressure
- Copper body, HNBR o-ring
| Fitting/Connector Type | Coupling |
|---|---|
| Nominal Size | 1/2 in |
| Temperature Rating | -40 to 300 deg F |
| End Style | Tube |
| Pressure Rating | 700 psi |
| Domestic/Import | Domestic |
| Dimensions | 0.51 in ID x 0.59 in OD x 5.8 in L |
| Material | Copper |
| Type | Braze-Free |
| Brand | Zoomlock |
