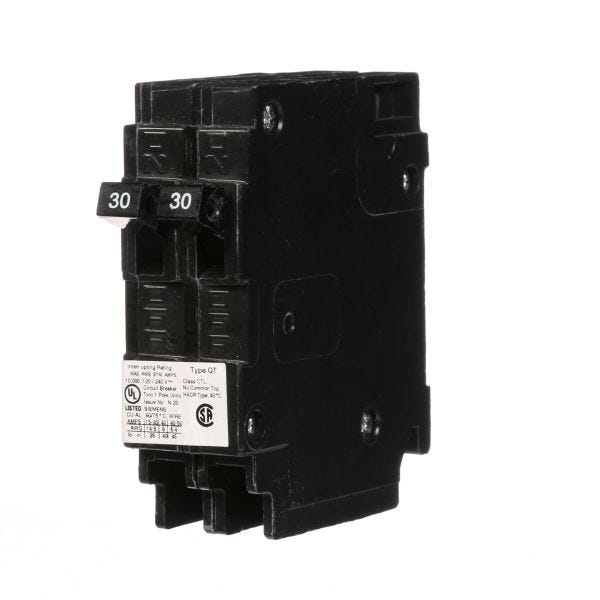

Siemens Q3030
30-30A 1P 120V BREAKER
SKU
751242
Siemens Molded Case Circuit Breaker, Type QT Duplex Low Voltage Miniature, 120 VAC, 30 A, 60 Hz Frequency, 10 kA Interrupt, QT Frame, Thermal/Magnetic Trip, 1 Pole, 1 ph, Plug-In Connection, 14 to 6 AWG Wire, 40 deg C, 3 in L x 3 in W x 1 in H Dimensions
- These space saver duplex breakers combine two independent 1/2 in breaker poles in a common unit
- This unit plugs into one loadcenter stab and requires one panel space
- Siemens 2-pole duplex circuit breaker features high quality thermal magnetic case for extra protection
- Circuit breaker has toggle type switch and offers long time instantaneous functions to perform efficiently
- It is ideal to use in Siemens EQ, ultimate, ITE and Gould loadcenters
- It offers circuit limiting with rejection clip and uses plug-in mounting to hold firmly
- 14 to 6 AWG copper aluminum wire range
- 120/240 VAC at 60 Hz
- 30 to 30 A
| Phase | 1 |
|---|---|
| Wire Size | 14 to 6 AWG |
| Type | Type QT Duplex Low Voltage Miniature |
| Frequency Rating | 60 Hz |
| Temperature Rating | 40 deg C |
| Frame | QT |
| Number of Poles | 1 |
| Connection Type | Plug-In |
| Dimensions | 3 in L x 3 in W x 1 in H |
| Interrupt Rating | 10 kA |
| Amperage Rating | 30 A |
| Trip Type | Thermal/Magnetic |
| Voltage Rating | 120 VAC |
| Brand | Siemens Ind |
