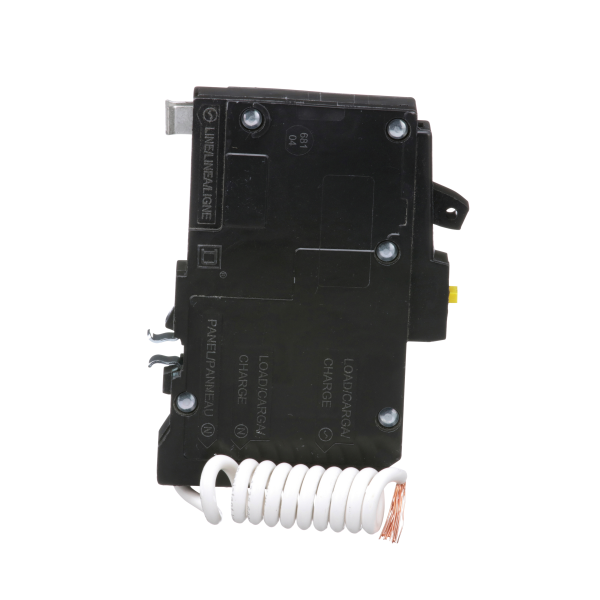

Square D QO115GFI
15A 1P 120V GFI BREAKER SQD
SKU
711452
Square D™, QO115GFI, Class A Ground Fault Miniature Circuit Breaker, 120 VAC, 15 A, 60 Hz Frequency, 10 kA Interrupt, QO/100A Frame, Thermal/Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 12 to 8 AWG, 14 to 8 AWG Wire, Plug-On Mounting, 40 deg C, 4.12 in H x 0.75 in W x 2.91 in D Dimensions
- Qwik-Gard® GFCIs provide the same branch circuit protection as standard QO™ circuit breakers
- They are longer than standard QO™ circuit breakers and thus require more gutter space
- Class A devices must trip at 6 mA of ground fault current and above and hold below 4 mA of ground fault current
- For use with QO™ load centers, NQOD panel boards/interiors and Speed-D® switchboard distribution panels
- 14 to 8 AWG Cu, 12 to 8 AWG Al wire
- Ground fault protecting class A 6 mA
- K-Curve trip
| Phase | 1 |
|---|---|
| Wire Size | 12 to 8 AWG, 14 to 8 AWG |
| Type | Class A Ground Fault |
| Frequency Rating | 60 Hz |
| Temperature Rating | 40 deg C |
| Frame | QO/100A |
| Number of Poles | 1 |
| Connection Type | Pressure Plate |
| Mounting Type | Plug-On |
| Dimensions | 4.12 in H x 0.75 in W x 2.91 in D |
| Interrupt Rating | 10 kA |
| Amperage Rating | 15 A |
| Trip Type | Thermal/Magnetic |
| Voltage Rating | 120 VAC |
| Brand | Breaker |
