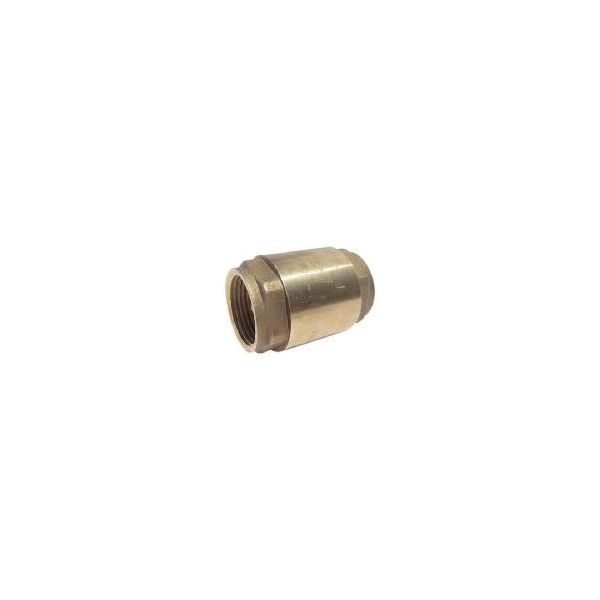

Red-White Valve 232AB 1-1/4
@ LF 11/4"IPS SPRING CHECK
SKU
586305
RWV® In-Line Check Valve, Series: 232AB, 1-1/4 in Nominal, Thread End Style, 200 psi Pressure, 200 lb WOG Pressure Class, 15 to 160 deg F, Yes Low Lead Compliance, Spring-Loaded Latch-Lock Handle Actuator, 2.58 in Inlet to Outlet Length, Forged Brass Body, NBR/POM Trim, NBR Gasket Softgoods, 2.17 in Dia Dimensions
- Horizontal or vertical installation
- Low noise operation
| Pressure Class | 200 lb WOG |
|---|---|
| End Style | Thread |
| Softgoods Material | NBR Gasket |
| Temperature Rating | 15 to 160 deg F |
| Inlet to Outlet Length | 2.58 in |
| Dimensions | 2.17 in Dia |
| Trim Material | NBR/POM |
| Actuator Type | Spring-Loaded Latch-Lock Handle |
| Low Lead Compliance | Yes |
| Pressure Rating | 200 psi |
| Nominal Size | 1-1/4 in |
| Series | 232AB |
| Body Material | Forged Brass |
| Brand | Red & White Valve |
