RWV 5015AB 1-1/4
LF 11/4" PEX RP BV F1960
SKU
619400

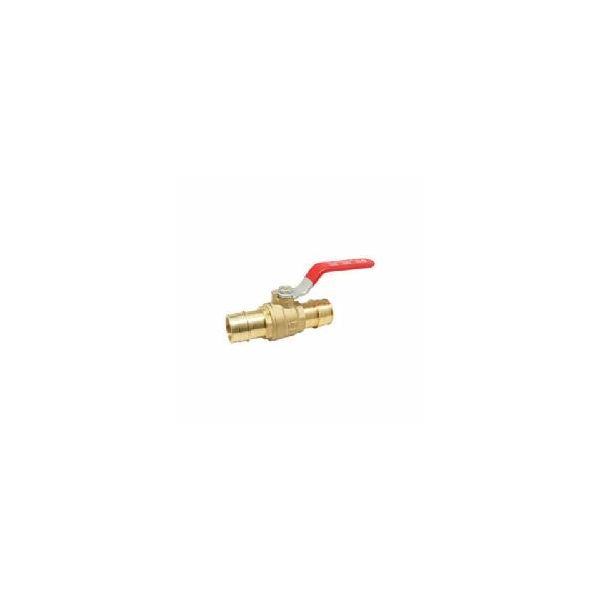

RWV® Ball Valve, Lead Free, Series: 5015AB, 1-1/4 in Nominal, Barb, 400 lb WOG, 15 to 160 deg F, Regular Port, 0.94 in Orifice, Chrome Plated Low Lead Brass Ball, 4.63 in Inlet to Outlet Length, 2.03 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, Double NBR Softgoods
- Blow-out proof stem
- F1960 certifications for pex expansion pipe fittings
- Double NBR O-ring/packing
| Softgoods Material | Double NBR |
|---|---|
| Port Type | Regular |
| End Style | Barb |
| Ball Material | Chrome Plated Low Lead Brass |
| Inlet to Outlet Length | 4.63 in |
| Top to Inlet Center | 2.03 in |
| Pressure Rating | 400 lb WOG |
| Orifice Size | 0.94 in |
| Body Material | Brass |
| Nominal Size | 1-1/4 in |
| Temperature Rating | 15 to 160 deg F |
| Series | 5015AB |
| Trim Material | Low Lead Brass Stem and PTFE Seat |
| Brand | Red & White Valve |
| Type | Ball Valve |
| Size | 1 1/4" |
