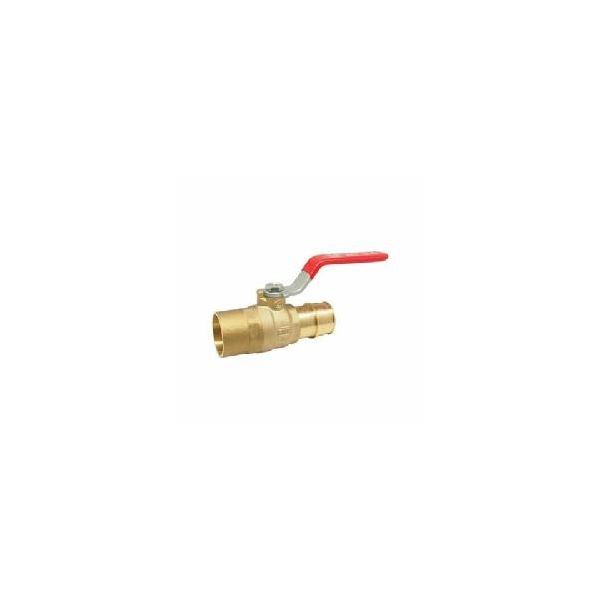

Red-White Valve 5017AB 3/4

LF 3/4" COP X PEX BV F1960
SKU
696935
The product cannot be delivered by Truck Shipping

RWV® Ball Valve, Lead Free, Series: 5017AB, 3/4 in Nominal, Barb x Solder, 400 lb WOG, 15 to 160 deg F, Regular Port, 1/2 in Orifice, Chrome Plated Low Lead Brass Ball, 2.93 in Inlet to Outlet Length, 1.77 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, Double NBR Softgoods

  • Blow-out proof stem
  • F1960 certifications for pex expansion pipe fittings
  • Double NBR O-ring/packing
More Information
Softgoods Material Double NBR
Port Type Regular
End Style Barb x Solder
Ball Material Chrome Plated Low Lead Brass
Inlet to Outlet Length 2.93 in
Top to Inlet Center 1.77 in
Pressure Rating 400 lb WOG
Orifice Size 1/2 in
Body Material Brass
Nominal Size 3/4 in
Temperature Rating 15 to 160 deg F
Series 5017AB
Trim Material Low Lead Brass Stem and PTFE Seat
Brand Red & White Valve
Type Ball Valve
Size 3/4"
