Reliance Worldwide Corporation 22185-0000LF
3/4 SHARK BALL VALV
SKU
410361

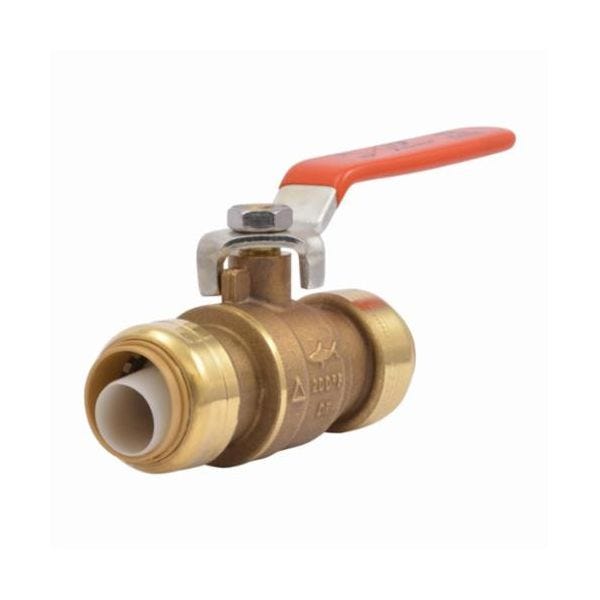

Sharkbite® Ball Valve, 3/4 in Nominal, Push-Fit, 200 psi, 200 deg F, Full Port, Media: Water, Lever Operated Actuator, Brass Ball, 3.62 in Inlet to Outlet Length, Brass Body, Brass Stem Trim, EPDM, Polished Chrome, Import
- Convenient single lever control - makes them easy to use and encourages shut-off of water supply
- Full port ball valve - allows water to flow freely through the valve
- Instant push-to-connect connections for increased ease of use - no soldering, clamps, unions or glue required
- Valve assembled to strict quality standards - measured thread engagement, measured torque
- Brass body end retainer, zinc plated steel handle
- DZR Lead free brass body
- PTFE seat ring/packing
- EPDM O-ring
| Domestic/Import | Import |
|---|---|
| Temperature Rating | 200 deg F |
| Trim Material | Brass Stem |
| Inlet to Outlet Length | 3.62 in |
| Ball Material | Brass |
| Softgoods Material | EPDM |
| Finish | Polished Chrome |
| Port Type | Full |
| Actuator Type | Lever Operated |
| Body Material | Brass |
| Media | Water |
| End Style | Push-Fit |
| Nominal Size | 3/4 in |
| Pressure Rating | 200 psi |
| Brand | Sharkbite |
