Resideo Technologies C554A1463/U

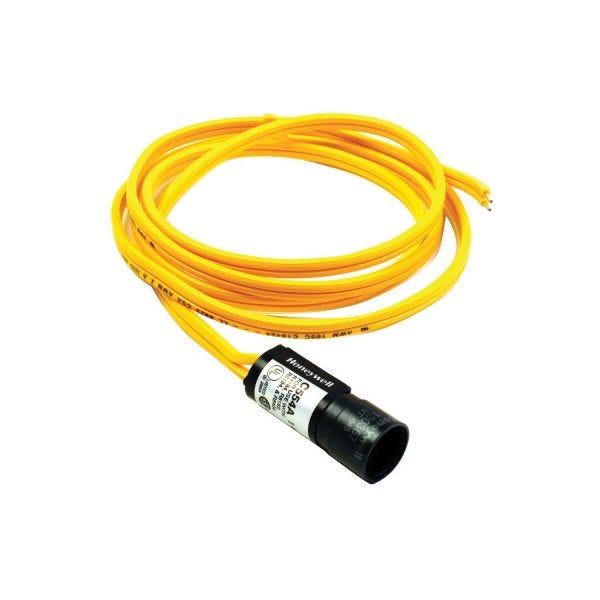

OIL BURNER FLAME DETECTOR*
SKU
199437
Resideo Flame Detector, 60 in Lead Length, Cadmium Sulfide, For Use With: R4166, R4184, R8182, R8184, R8185, R8404, R8991, R7997, R7184 and R7284 Oil Primary Control, 1 in L x 1/2 in W x 1-7/8 in H
- On flame failure, the light sensitive cadmium sulfide cell, in conjunction with flame sensing circuitry, causes the Protectorelay® control to shutdown the main oil burner
- Glass-to-metal hermetic seal in plug-in cell prevents deterioration by humidity, soot or oil fumes
- Replaceable CAD cell
- Photoconductive flame sensing device for sequencing oil burner systems
| Suitable For Use With | R4166, R4184, R8182, R8184, R8185, R8404, R8991, R7997, R7184 and R7284 Oil Primary Control |
|---|---|
| Lead Length | 60 in |
| Gas Type | Cadmium Sulfide |
| Dimensions | 1 in L x 1/2 in W x 1-7/8 in H |
| Brand | Honeywell |
