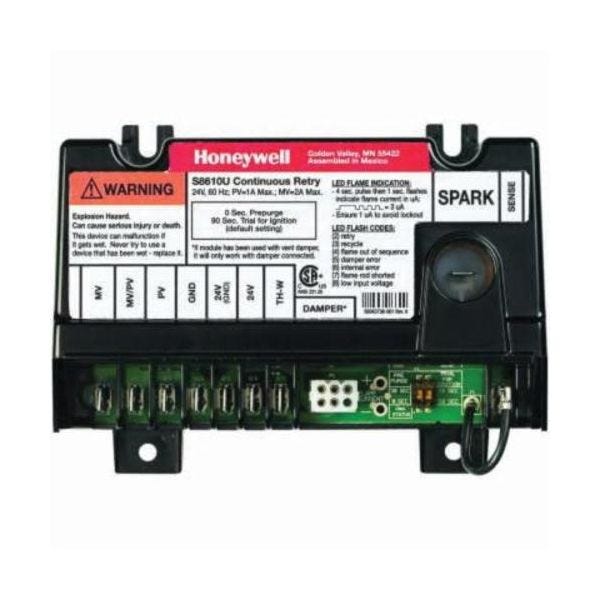

Resideo S8610U3009/U
H/W UNIV IID PILOT IGN MOD*
SKU
376098
Resideo Universal Pilot Ignition Module, Intermittent, 24 VAC, 3-15/16 in H x 5-7/16 in W x 2-5/8 in D, Import
- Replaces over 400 White-Rodgers, Robertshaw® and Honeywell® intermittent pilot ignition modules
- Provides ignition sequencing, flame monitoring and safety shutoff for intermittent pilot warm air furnaces and heating appliances
- Provides 100 percent pilot gas shutoff if pilot fails to light; after 6 min delay, trial for ignition is repeated
- Ignition trail/delay sequence is repeated until the appliance lights or call for heat is removed
- For use with natural or LP gas
- For use in single rod or dual rod or remote sense applications
- Includes spark cable adapters to allow field replacement of both Honeywell® and competitive controls without replacing existing spark cable
| Type | Intermittent |
|---|---|
| Dimensions | 3-15/16 in H x 5-7/16 in W x 2-5/8 in D |
| Domestic/Import | Import |
| Specifications | 24 VAC |
| Brand | Honeywell |
