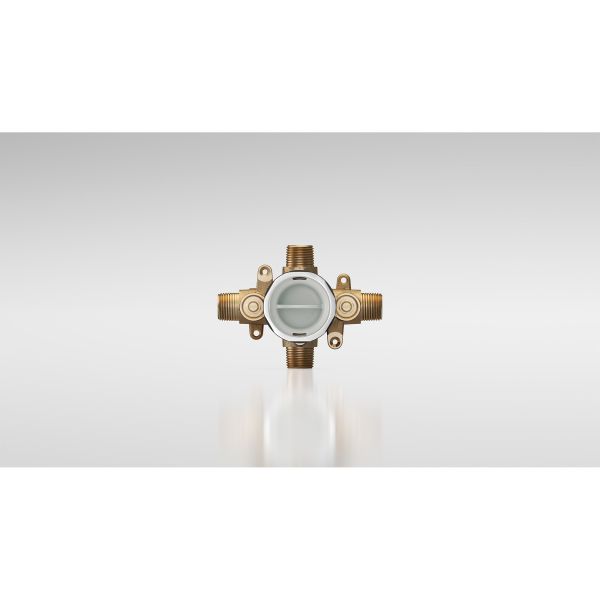

American Standard RU101SS
FLASH VALV ROUGH W/UNI W SS
SKU
787671
American Standard, RU101SS, 1/2 in NPT Inlet Connection, 1/2 in NPT Outlet, For Use With: 2-Handle Thermostat Valve, Brass Body, Import
- Cast brass valve body - durable, ideal material for prolonged contact with water
- Flat back - allows valve to be mounted flush against cross brace for easy and solid installation
- Test cap - allows valve body to be tested and flushed without the presence of the valve cartridge, can be tested using test cap with air (200 psi) or water (300 psi)
- Stainless steel retaining ring with flats, secures test cap/cartridge in place and eliminates need for screws, flats make it simple to loosen ring for quick, easy insertion/removal of test cap/cartridge
- Back-to-back capability hot and cold can be reversed quickly and easily
- Exclusive plaster guard - plaster guard is designed to protect valve and act as a guide during installation, it can serve as mounting support for thin-wall installations
- Wide rough-in range - from 1-3/4 to 2-3/4 in from finished wall to the back of the valve
- Includes screwdriver stops for easy servicing at the valve
- Cartridge ships with trim
| Inlet Connection | 1/2 in NPT |
|---|---|
| Body Material | Brass |
| Domestic/Import | Import |
| Suitable For Use With | 2-Handle Thermostat Valve |
| Outlet Connection | 1/2 in NPT |
| Brand | American Standard |
