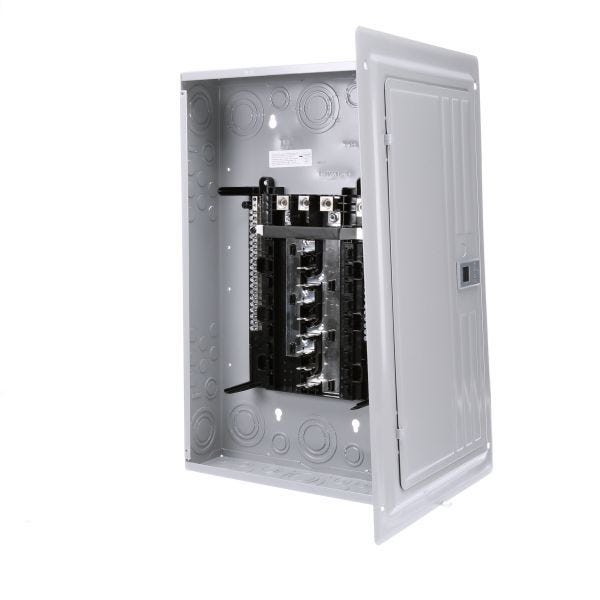

Siemens S1836L3150
150A 3PH 18SP ML LOADCENTER
SKU
700010
Siemens Three Phase Main Lug Load Center, Series: ES Series, 120/240 VAC, 150 A, 22 kA Interrupt, 36 Circuits, 3/4-Wire Delta Wiring Configuration, 150 A Bus Rating, 18 Spaces, NEMA 1 Enclosure, 24 in H x 14-1/4 in W x 3-7/8 in D Enclosure Box
- Invertible for bottom feed application
- Ground bar field installed (select skus with "G" suffix will have ground bar factory installed)
- Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
- Single side inboard neutral on 24 circuits and below, dual on 30 circuits and above
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
- Indoor enclosure
- Aluminum busbar
- Combination mounting
| Wiring Configuration | 3/4-Wire Delta |
|---|---|
| Number of Circuits | 36 |
| Enclosure Box Size | 24 in H x 14-1/4 in W x 3-7/8 in D |
| Enclosure Type | NEMA 1 |
| Bus Rating | 150 A |
| Number of Spaces | 18 |
| Series | ES Series |
| Interrupt Rating | 22 kA |
| Amperage Rating | 150 A |
| Voltage Rating | 120/240 VAC |
| Brand | Siemens Ind |
