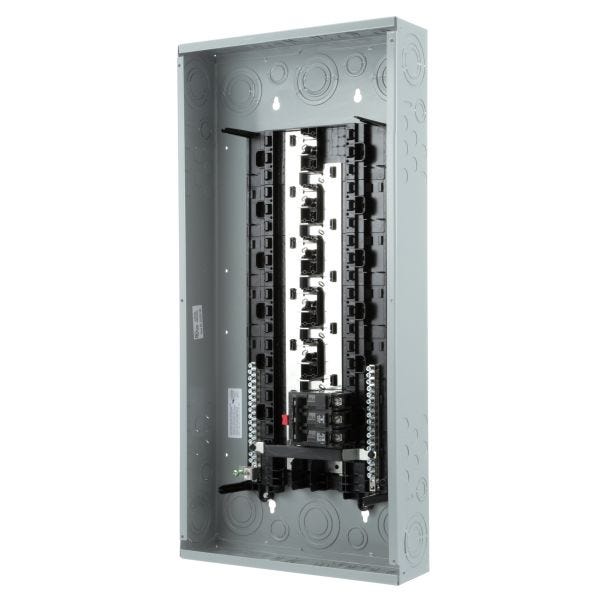

Siemens S3030B3100
100A 3PH 30SP MB LOADCENTER
SKU
708888
Siemens Three Phase Main Breaker Load Center, Series: ES Series, 120/240 VAC, 100 A, 22 kA Interrupt, 30 Circuits, MB Breaker, 3/4-Wire Wiring Configuration, 100 A Bus Rating, 30 Spaces, NEMA 1 Enclosure, 30 in H Enclosure Box
- Invertible for bottom feed application
- Ground bar field installed (select skus with "G" suffix will have ground bar factory installed)
- Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
- A rigid, sturdy base pan provides the ruggedness required for the most harsh applications
- All devices convertible from main lug to main breaker and vice versa
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- The prepositioned bond screw eliminates bond strap/screw assemblies, and reduces the risk of losing components in the field
- The patented INSTA-WIRE neutral/ground system allows for faster installation because screws are backed out, ready for wire insertion
- The visible neutral and grounds system aids in the insertion of conductors
- Single side inboard neutral on 24 circuits and below, dual on 30 circuits and above
- 100 A load regulation
- Aluminum busbar
- Indoor enclosure
- 60/75 deg C temperature
- Combination mounting
| Wiring Configuration | 3/4-Wire |
|---|---|
| Number of Circuits | 30 |
| Enclosure Box Size | 30 in H |
| Enclosure Type | NEMA 1 |
| Bus Rating | 100 A |
| Number of Spaces | 30 |
| Series | ES Series |
| Interrupt Rating | 22 kA |
| Amperage Rating | 100 A |
| Voltage Rating | 120/240 VAC |
| Breaker Type | MB |
| Brand | Siemens Ind |
