Sioux Chief 523-2434

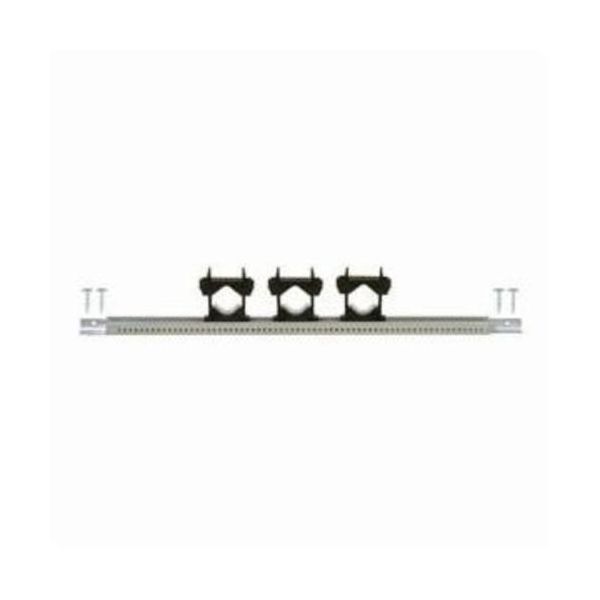

Sioux Chief PowerBar™ Universal Bracket, Series: 523-24, Steel, Zinc Plated, 0.529 in H x 0.602 in W, Domestic

• Patent # 6,446,915
• Patent # 6,402,096
• Galvanized steel bracket and tough plastic clamp are strong and support tube or pipe without bowing
• Available with one, two or three touch down clamp pre-loaded to reduce installation time
• Shorter bracket expand to fit opening from 9 to 16 in
• Clamp secure 1/4 to 1 in CTS copper, CPVC or PEX
• Polyvinylidene fluoride (PVC), meets ASTM E84 25/50 and UL94 V-O flame rating channel clamp (orange)
• Nylon 66, V2 flame rating channel clamp (black)
• TPE (black clamp), PVDF (orange clamp) clamp insert
• (8) 1 in Phillips, panhead, drill tip, zinc plated screw
• Adjust bracket telescopically to desired L (bracket must have a minimum center overlap of 2 in)
• Fasten all four tabs to building member, slide channel clamp (if applicable) to desired location along bracket
• Place conduit between clamp posts, and engage clamp bridge, ratchet bridge of channel clamp down over both posts evenly
• It is permissible to use one bracket section and fasten directly through channel
• 20 ga steel
