Sioux Chief 696-2313CF
*OXBOX WM CPVC MINI W/FRAME
SKU
454515

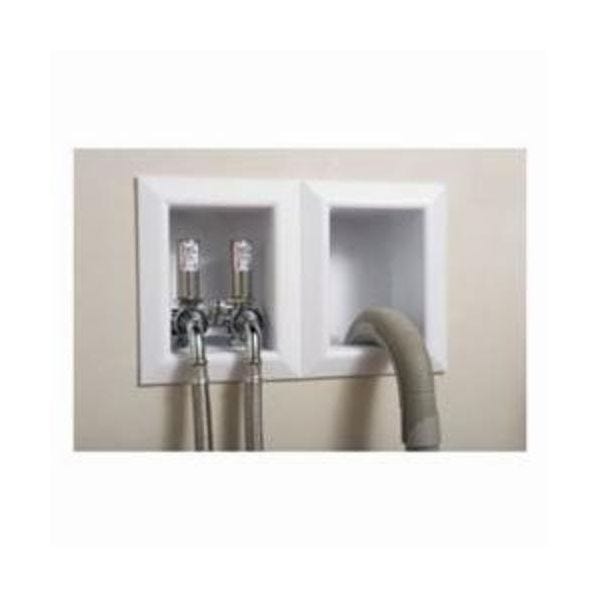

Sioux Chief OxBox™ Outlet Box, Series: 696, 1/2 in Inlet, 3/4 in Outlet, CPVC Male Inlet, Male Hose Thread Outlet, 250 psig, 250 deg F, ABS, 11-1/2 in W x 7-1/4 in H, Domestic
- Boxes mount securely to stud or over studs
- Separates supply and drainage systems into two stud bays
- Separate boxes offer flexible layout
- Durable ABS stands up to jobsite abuse
- Drain knockout is easy to remove with pliers
- Debris covers included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valve
- ABS Frame, galvanized steel bracket, galvanized steel box clip, type L copper tube arrester body, piston made of polypropylene with two EPDM o-rings, piston lubrication made of dow-corning and 111 FDA approved silicone compound, chrome-plated forged brass valve body
- 100 psi max testing air pressure
- Standard pack (supply box, frame, bracket, debris cover)
Material | ABS |
---|---|
Inlet Type | CPVC Male |
Outlet Type | Male Hose Thread |
Pressure Rating | 250 psig |
Inlet Size | 1/2 in |
Outlet Size | 3/4 in |
Temperature Rating | 250 deg F |
Dimensions | 11-1/2 in W x 7-1/4 in H |
Domestic/Import | Domestic |
Series | 696 |
Brand | Sioux Chief |
