Sioux Chief 696-2313MF
WASH MACH OXBOX MXFSWT ARREST
SKU
382324

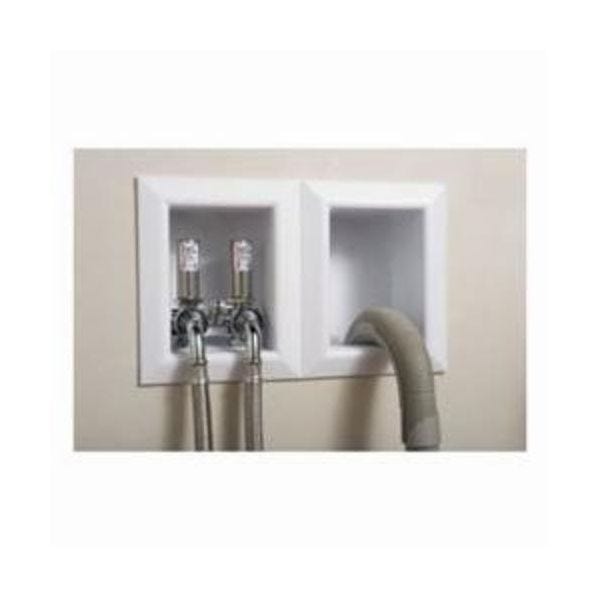

Sioux Chief OxBox™ Outlet Box, Series: 696, 1/2 in Inlet, 3/4 in Outlet, Female C Inlet, Male Hose Thread Outlet, 250 psig, 250 deg F, ABS, 7-1/4 in H x 11-1/2 in W, Domestic
- Boxes mount securely to stud or over studs
- Separates supply and drainage systems into two stud bays
- Separate boxes offer flexible layout
- Durable ABS stands up to jobsite abuse
- Drain knockout is easy to remove with pliers
- Debris covers included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valve
- ABS Frame, galvanized steel bracket, galvanized steel box clip, type L copper tube arrester body, piston made of polypropylene with two EPDM o-rings, piston lubrication made of dow-corning and 111 FDA approved silicone compound, chrome-plated forged brass valve body
- 100 psi max testing air pressure
- Without hose
- Standard pack (supply box, frame, bracket, debris cover)
| Material | ABS |
|---|---|
| Inlet Type | Female C |
| Outlet Type | Male Hose Thread |
| Pressure Rating | 250 psig |
| Inlet Size | 1/2 in |
| Outlet Size | 3/4 in |
| Temperature Rating | 250 deg F |
| Dimensions | 7-1/4 in H x 11-1/2 in W |
| Domestic/Import | Domestic |
| Series | 696 |
| Brand | Sioux Chief |
| Type | Washing Machine Box |
