Sioux Chief 696-G1010MF
*LF ICE OX BOX W/ARRESTER
SKU
638537

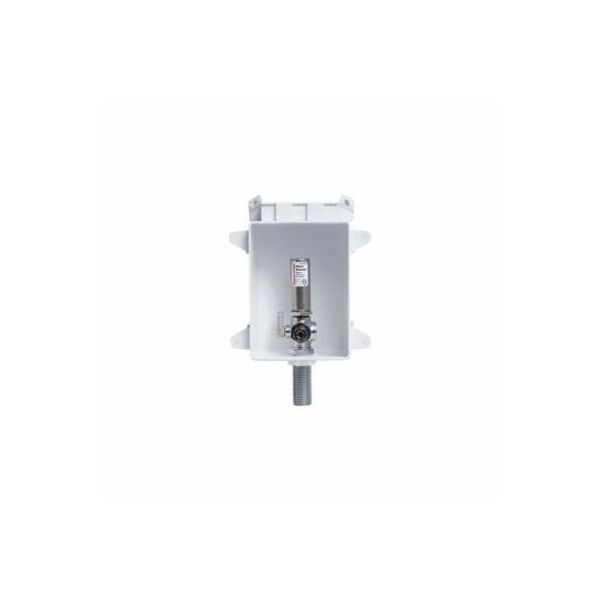

Sioux Chief OxBox™ Ice Maker Outlet Box, Series: 696, 1/2 in Inlet, 1/4 in Outlet, Female C Inlet, Compression Outlet, 250 psig, 250 deg F, ABS, 5-3/4 in W x 7-1/4 in H, Import
- Boxes mount securely to stud or over studs
- Durable ABS stands up to jobsite abuse
- Box mounts easily to stud for top or bottom supply
- High quality quarter-turn ball valve
- The debris cover protects valves from drywall mud and paint during construction
- 100 psi max testing air pressure
- ABS frame, galvanized steel bracket, stainless steel arrester body, piston made of polypropylene with two EPDM o-rings, piston lubrication made of dow-corning, 111 FDA approved silicone compound, chrome-plated forged brass valve body
- Without hose
- Standard pack (supply box, frame, bracket, debris cover)
| Material | ABS |
|---|---|
| Inlet Type | Female C |
| Outlet Type | Compression |
| Pressure Rating | 250 psig |
| Inlet Size | 1/2 in |
| Outlet Size | 1/4 in |
| Temperature Rating | 250 deg F |
| Dimensions | 5-3/4 in W x 7-1/4 in H |
| Domestic/Import | Import |
| Series | 696 |
| Brand | Sioux Chief |
| Type | Ice Maker Box |
