Sioux Chief 696-G2001XF
LF OX LAV BOX 1/2PEX F1807
SKU
592783

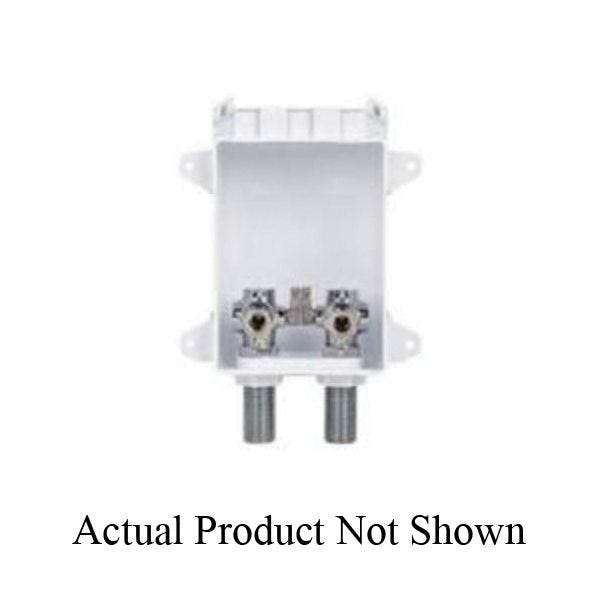

Sioux Chief OxBox™ Lavatory Outlet Box, Series: 696, 1/2 in Inlet, 3/8 in Outlet, F1807 PEX Crimp™ Inlet, Compression Outlet, 250 psi Pressure, 250 deg F, ABS, 7-1/4 in H x 5-3/4 in W, Domestic
- Patent No 7,360,553 and no 7,735,511
- ABS boxes mount securely to stud or over studs
- Allows for straight and secure supply stops recessed into the wall
- Eliminates backbreaking labor of cleaning stub outs and installing supply stops
- Debris covers included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valves with 3/8 in OD compression outlet connections
| Material | ABS |
|---|---|
| Inlet Type | F1807 PEX Crimp™ |
| Outlet Type | Compression |
| Pressure Rating | 250 psi |
| Inlet Size | 1/2 in |
| Outlet Size | 3/8 in |
| Temperature Rating | 250 deg F |
| Dimensions | 7-1/4 in H x 5-3/4 in W |
| Domestic/Import | Domestic |
| Series | 696 |
| Brand | Sioux Chief |
