Sioux Chief 696-G2011MF
*LF 1/2"F SWT LAV BOX W/ARREST
SKU
638539

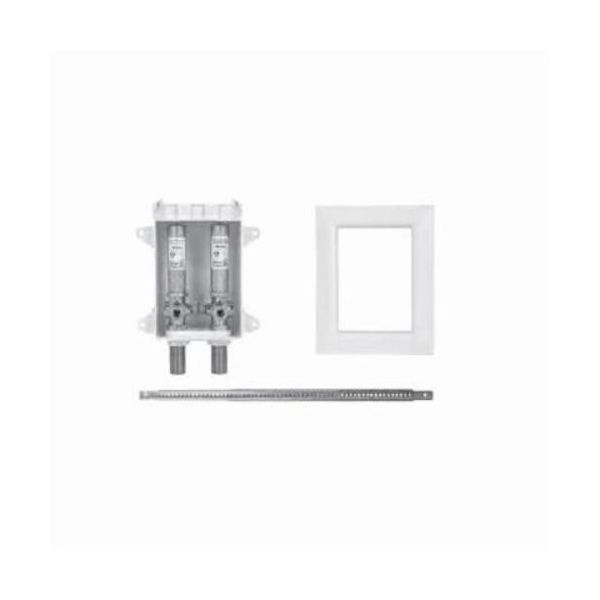

Sioux Chief OxBox™ Lavatory Outlet Box, Series: 696, 1/2 in Inlet, 3/8 in Outlet, Female C Inlet, Compression Outlet, 250 psi, 250 deg F, ABS, 7-1/4 in H x 5-3/4 W, Domestic
- Patent no 7,360,553 & no 7,735,511
- ABS boxes mount securely to stub or over studs
- Allow for straight and secure supply stops recessed into the wall
- Eliminates backbreaking labor of cleaning stub out and installing supply stops
- Debris cover included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valves with 3/8 in OD compression outlet connection
- ABS frame, galvanized steel bracket, stainless steel arrester body, polypropylene with two EPDM O-ring piston, chrome plated forged brass valve body
- Standard pack (supply box, frame, bracket, debris cover)
- MiniRester™ water hammer arrester
- No lead valve
| Material | ABS |
|---|---|
| Inlet Type | Female C |
| Outlet Type | Compression |
| Pressure Rating | 250 psi |
| Inlet Size | 1/2 in |
| Outlet Size | 3/8 in |
| Temperature Rating | 250 deg F |
| Dimensions | 7-1/4 in H x 5-3/4 W |
| Domestic/Import | Domestic |
| Series | 696 |
| Brand | Sioux Chief |
