Sioux Chief 696-G2303MF
LF OX BOX 1/2" FEM SWT
SKU
440139

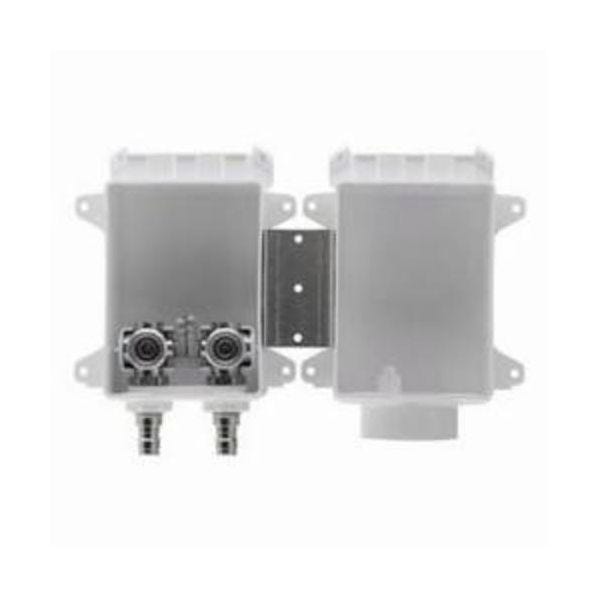

Sioux Chief OxBox™ Outlet Box, Series: 696, 1/2 in Inlet, 3/4 in Outlet, Female C Inlet, Male Hose Thread Outlet, 250 psig, 250 deg F, ABS, 11-1/2 in W x 7-1/4 in H, Domestic
- Boxes mount securely to stud or over studs
- Separates supply and drainage systems into two stud bays
- Separate boxes offer flexible layout
- Durable ABS stands up to jobsite abuse
- Drain knockout is easy to remove with pliers
- Debris covers included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valve
- No arrester
- Standard pack (supply box, frame, bracket, debris cover)
| Material | ABS |
|---|---|
| Inlet Type | Female C |
| Outlet Type | Male Hose Thread |
| Pressure Rating | 250 psig |
| Inlet Size | 1/2 in |
| Outlet Size | 3/4 in |
| Temperature Rating | 250 deg F |
| Dimensions | 11-1/2 in W x 7-1/4 in H |
| Domestic/Import | Domestic |
| Series | 696 |
| Brand | Sioux Chief |
