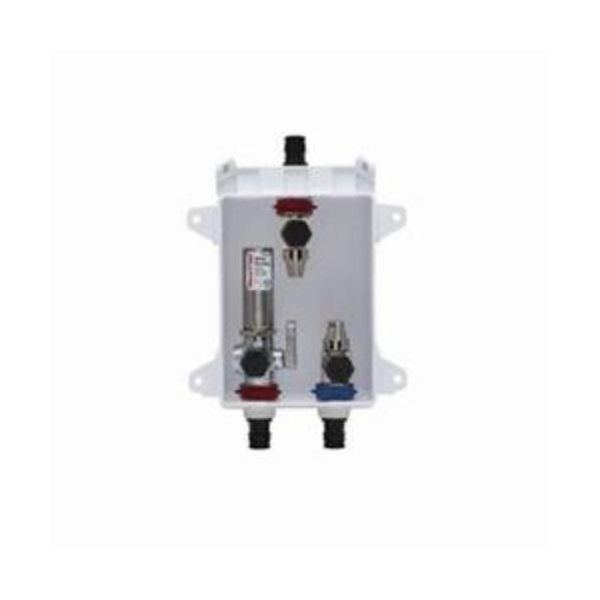

Sioux Chief 696-G3011WR
OxBOX KIT W/MINIREST F1960 3VL
SKU
820980
Sioux Chief OxBox™ Lavatory Outlet Box, Series: 696, 1/2 in Inlet, 3/8 in Outlet, F1960 PEX Grip™ Inlet, Compression Outlet, 250 psi, 250 deg F, ABS, 7-1/4 in H x 5-3/4 in W, Import
- Patent No 7,360,553 and no 7,735,511
- ABS boxes mount securely to stud or over studs
- With MiniRester water hammer arrester
- Allows for straight and secure supply stops recessed into the wall
- Eliminates backbreaking labor of cleaning stub outs and installing supply stops
- Debris covers included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valves with 3/8 in OD compression outlet connections
- The three valve box is perfect for kitchen sink/dishwasher applications
- 1/2 in F1960 Grip™
- Galvanized steel bracket, stainless steel arrester body, polypropylene with two EPDM o-rings piston, chrome-plated DZR brass - no-lead valve
| Material | ABS |
|---|---|
| Inlet Type | F1960 PEX Grip™ |
| Outlet Type | Compression |
| Pressure Rating | 250 psi |
| Inlet Size | 1/2 in |
| Outlet Size | 3/8 in |
| Temperature Rating | 250 deg F |
| Dimensions | 7-1/4 in H x 5-3/4 in W |
| Domestic/Import | Import |
| Series | 696 |
| Brand | Sioux Chief |
