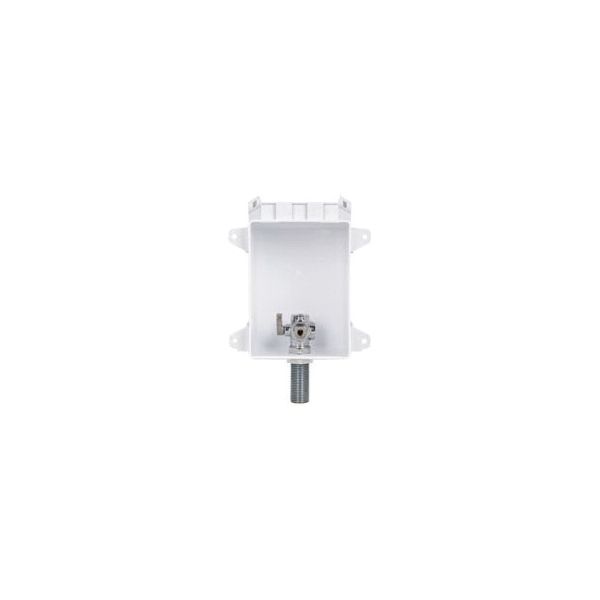

Sioux Chief 696RG1001WF
*1/2 F1960 OX BOX TOILET /DW
SKU
697941
Sioux Chief OxBox™ Lead Free Toilet/Dishwasher Outlet Box, Fire Rated, Series: 696, 1/2 in Inlet, 3/8 in Outlet, PEX Cold Expansion Inlet, Compression Outlet, 250 psig, 250 deg F, ABS, 5-3/4 in W x 7-1/4 in H, Domestic
- Patent No 7,360,553 and no 7,735,511
- Boxes mount securely to stud or over studs
- Box mounts easily to stud for top or bottom supply
- High-quality quarter-turn ball valves with 1/4 in OD compression outlet connection
- Standard pack (supply box, frame, bracket, debris cover)
- Engineered and tested for harsh water conditions
| Material | ABS |
|---|---|
| Inlet Type | PEX Cold Expansion |
| Outlet Type | Compression |
| Pressure Rating | 250 psig |
| Inlet Size | 1/2 in |
| Outlet Size | 3/8 in |
| Temperature Rating | 250 deg F |
| Type | Fire Rated |
| Dimensions | 5-3/4 in W x 7-1/4 in H |
| Domestic/Import | Domestic |
| Series | 696 |
| Brand | Sioux Chief |
