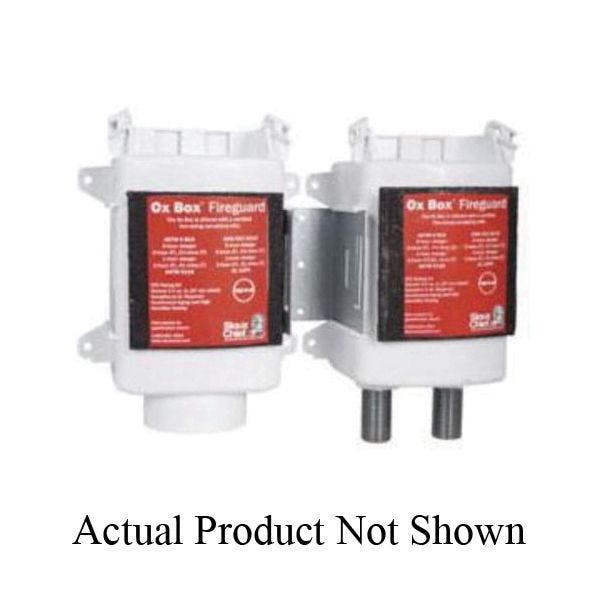

Sioux Chief 696RG2313WF
*1/2 F1960 WASH BOX W/ARRESTER
SKU
697940
Sioux Chief OxBox™ Fire Rated Washing Machine Outlet Box, Series: 696R, 1/2 in Inlet, 3/4 in Outlet, F1960 PEX Grip Inlet, Male Hose Thread Outlet, 250 psi, 250 deg F, ABS, 7-1/4 in H x 11-1/2 in W, Domestic
- Patent no 7,360,553 & no 7,735,511
- Boxes mount securely to stub or over studs
- Separate supply and drainage system into two stub bays
- Drain knockout is easy to remove with plier
- Supply lines can be mounted from above or below
- High quality quarter-turn ball valve
- No lead valve
- MiniRester™ water hammer arrester
- Fire rated ABS frame, fire rated ABS frame extension, galvanized steel bracket, galvanized steel box clip, dow corning, 111 FDA approved silicone compound piston lubrication, chrome plated forged brass valve body
| Material | ABS |
|---|---|
| Inlet Type | F1960 PEX Grip |
| Outlet Type | Male Hose Thread |
| Pressure Rating | 250 psi |
| Inlet Size | 1/2 in |
| Outlet Size | 3/4 in |
| Temperature Rating | 250 deg F |
| Dimensions | 7-1/4 in H x 11-1/2 in W |
| Domestic/Import | Domestic |
| Series | 696R |
| Brand | Sioux Chief |
| Type | Washing Machine Box |
