Square D 9013FSG2J21
SQ D 30/50 PRESSURE SWITCH
SKU
108246

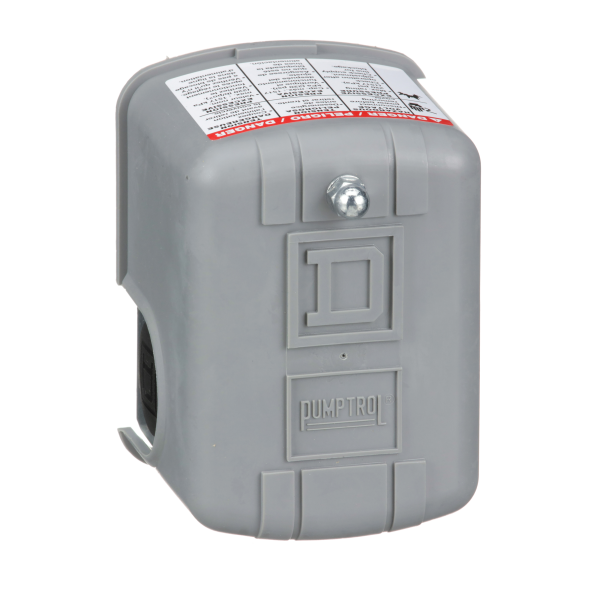

Square D™ Pumptrol® Pressure Switch, Electro-Mechanical, 10 to 45 psi, 15 to 30 psi Differential, 220 psi Maximum, 2NC/DPST-DB, 300000 cycles Operating Cycles, -33 to 257 deg F, Screw Clamp, Nitrile Diaphragm, Thermoplastic Housing, NEMA 1/IP20, 2.78 in W x 3.76 in D x 2.8 in H
- The type FSG standard water pump switch is suitable for all types of pumps, including jets, submersible and reciprocating
- Diaphragm actuated
- 2NC, snap action, DPST-DB, form YY contact
- Fresh water (-22 to 257 deg F)
- 1/4 in NPSF internal conforming to UL 508 fluid connection
- Regulation between 2 thresholds, adjustable differential scale
- 4 terminal blocks
- Screw clamp terminal, 10 AWG clamping capacity electrical connection
- Nitrile (Buna-N) diaphragm
- 300000 cycles mechanical durability, 100000 cycles at 10 cycles/min electrical durability
- Zinc plated steel or equivalent flange
- General purpose (indoor) enclosure
- Bracket mounting
- (2) 0.88 in cable entries with 0.84 in across flats
- Noryl thermoplastic resin
- General purpose (indoor) environmental conditions
| Pressure Rating | 10 to 45 psi |
|---|---|
| Connection Type | Screw Clamp |
| Diaphragm Material | Nitrile |
| Operating Cycles | 300000 cycles |
| Type | Electro-Mechanical |
| Temperature Rating | -33 to 257 deg F |
| Dimensions | 2.78 in W x 3.76 in D x 2.8 in H |
| Differential | 15 to 30 psi |
| Contact Configuration | 2NC/DPST-DB |
| Housing Material | Thermoplastic |
| Maximum Pressure | 220 psi |
| Enclosure Type | NEMA 1/IP20 |
| Brand | Boshart Ind |
