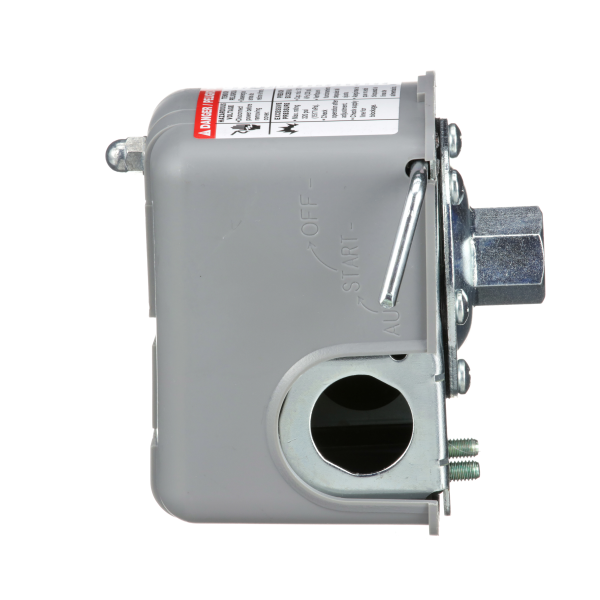

Square D 9013FSG2J24M4

Square D™ Pumptrol™ Pressure Switch, Adjustable Electro-Mechanical, Series: 9013FS, 10 to 45 psig Pressure, 15 to 30 psi Differential, 220 psi Maximum, 2NC/DPST-DB Contact Configuration, 1 hp at 575 VAC Contact, 60 cpm Operating Cycles, -33 to 257 deg F, 1/4 in NPSF Screw Clamp Connection, Nitrile Diaphragm, Thermoplastic Housing Material, IP20/NEMA 1 Enclosure, 2.8 in H x 3.1 in W x 3.76 in D Dimensions

• The type FSG standard water pump switch is suitable for all types of pumps, including jets, submersible and reciprocating
• Diaphragm actuated
• 2NC, snap action, DPST-DB, form YY contact
• -22 to 257 deg F fresh water controlled fluid
• 1/4 in NPSF internal fluid connection
• Regulation between 2 thresholds, adjustable differential scale
• 4-terminal block
• 10 AWG clamping capacity electrical connection
• Nitrile (Buna-N) diaphragm
• 300000 cycles mechanical durability, 100000 cycles at 10 cycles/min electrical durability
• Zinc plated steel or equivalent flange
• 1.5 kW at 230 VAC 1-phase, 1.5 kW at 115 VAC 3-phase, 1.1 kW at 115 VAC 1-phase, 0.75 kW at 575 VAC 3-phase, 0.18 kW at 115 VDC2.2 kW at 230 VAC 3-phase, 0.75 kW at 460 VAC 3-phase, 0.18 kW at 230 VDC power rating
• General purpose (indoor) environmental conditions
• Bracket mounting
• Two 0.88 in cable entries with 0.84 in across flats
• Noryl thermoplastic resin
• Low pressure cut-off (auto-off) operates roughly 10 psig below cut in
• 220 psig system pressure
