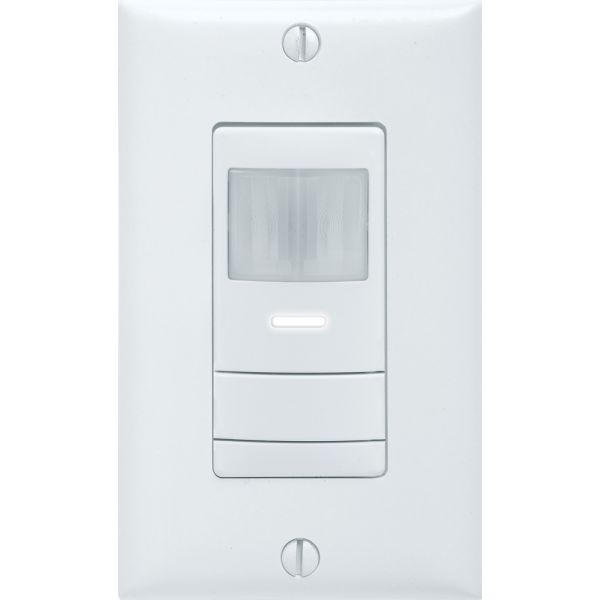

Sensor Switch WSX WH

Sensor Switch™, WSX WH, Wall Mount Occupancy Sensor, Rectangular Single Relay, Series: WSX, 120/277 VAC, 800/1200 W Power, Passive Infrared Sensor, 20 ft Coverage, 180 deg Viewing, Fluorescent/Incandescent/LED Lamp, 50/60 Hz Response, Wall Mounting, 0 to 60 deg C, Plastic, White, 2.74 in H x 1.68 in W x 1.63 in D Dimensions

• Integrated photocell (disabled by default) prevents light from turning on if sufficient daylight is present not available in nightlight versions
• Vandal-resistant lens
• 1-gang switch box mounting
• 1/4 hp motor load
• Auto-ON (default) or vacancy operating mode
• Networkable control
• 100% passive detection, no potential for interference with other building systems
• Push button programmable without removing cover plate adjustable time delays and operating modes
• Dual technology (PDT) utilizes PIR/Microphonics detection (patented)
• Self-grounding mounting strap
• Fully meets NEC 2011 section 404.2C neutral requirements, no current leakage to ground when connected to neutral
• Line power and load wires are interchangeable, impossible to wire backwards (patented)
• 30 to 48 in mounting height
• Gloss finish
• Rectangular shape
• For indoor environment
• Device accommodates powering over ground or neutral connection (patent pending)
• The Sensor Switch WSX Wall Switch Sensor has a modern low-profile appearance, soft-click buttons and small motion detection up to 20 ft (6.10 m), making them ideal for commercial and residential lighting control applications or any other small enclosed spaces
• Easy to install while helping to aid in energy code compliance, the WSX has a patented wiring method that enables them to function with or without a neutral connection
• Compatible with LEDs, electronic and magnetic ballasts, CFLs, and incandescents
