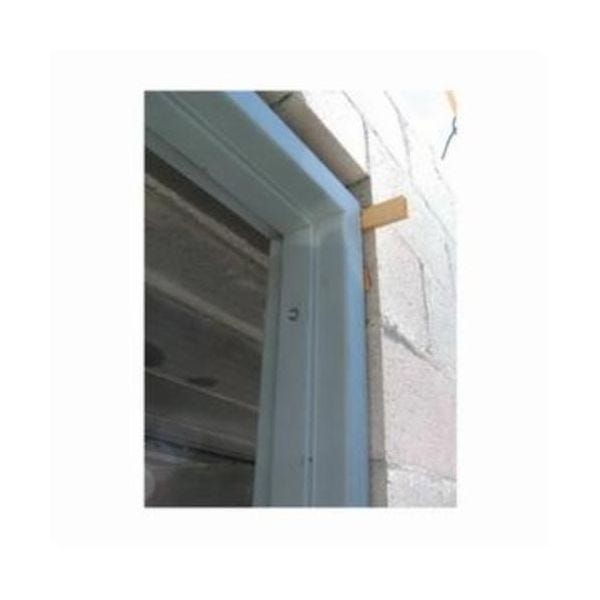

Simpson Strong-Tie SL31112H
5/16 X 1-1/2" SLEEVE ALL
SKU
646507
Simpson Strong-Tie® Sleeve Anchor, Pre-Assembled Expanding, Series: Sleeve-All®, 5/16 in Diameter, 1/4-20 Thread, Carbon Steel, Hex Head, Hex Drive, Zinc Plated, 1-7/16 in Minimum Embedment Depth, 1-1/2 in Overall Length, 5/16 in Drill, 540 lb at 2000 psi Shear Strength, 280 lb at 2000 psi Tensile Strength
- 3/8 in THK maximum fixture
- Material meets minimum 50000 psi tensile anchor body
- SAE J403, grade 1008 cold rolled steel sleeve
- Commercial grade nut, meets requirements of ASTM A563 grade A
- SAE J403, grade 1008/1010 cold rolled steel washer
- 3-1/8 in critical edge distance
- 5-3/4 in critical spacing distance
- 1120 lb at 2000 psi/1320 lb at 4000 psi/ultimate tension load for concrete
- 2160 lb at 2000 psi ultimate shear load for concrete
- 8 ft-lb install torque
- 330 lb at 4000 psi for concrete
| Series | Sleeve-All® |
|---|---|
| Material | Carbon Steel |
| Head Type | Hex |
| Tensile Strength | 280 lb at 2000 psi |
| Thread Size | 1/4-20 |
| Diameter | 5/16 in |
| Type | Pre-Assembled Expanding |
| Overall Length | 1-1/2 in |
| Finish | Zinc Plated |
| Shear Strength | 540 lb at 2000 psi |
| Minimum Embedment Depth | 1-7/16 in |
| Drill Size | 5/16 in |
| Drive Type | Hex |
| Type | Pre-Assembled Expanding |
| Head Type | Hex |
| Brand | Simpson Strong-Tie |
