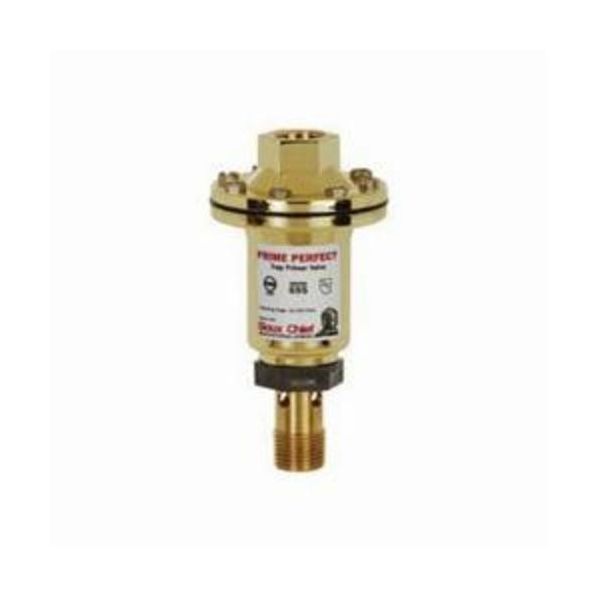

Sioux Chief 695-01

Sioux Chief PrimePerfect™ Trap Prime valve, Automatic, Series: 695, Brass Plated, Domestic

• DO NOT use thread sealant compound
• For use in accessible locations only
• Automatically activates to replenish evaporated water in floor drain traps to prevent the escape of sewer gases
• Large port openings in debris screen prevent clogging from sediment and debris
• Activates with a 10 psi pressure drop at operating pressure of 30 to 150 psi
• Water release is factory set 0.25 oz per activation, so no field adjustment is necessary
• Single trap primer can service up to eight traps using splitter and distributors
