WATTS 0335009
EAF-11 PLUG IN TRANSFORMER
SKU
396150

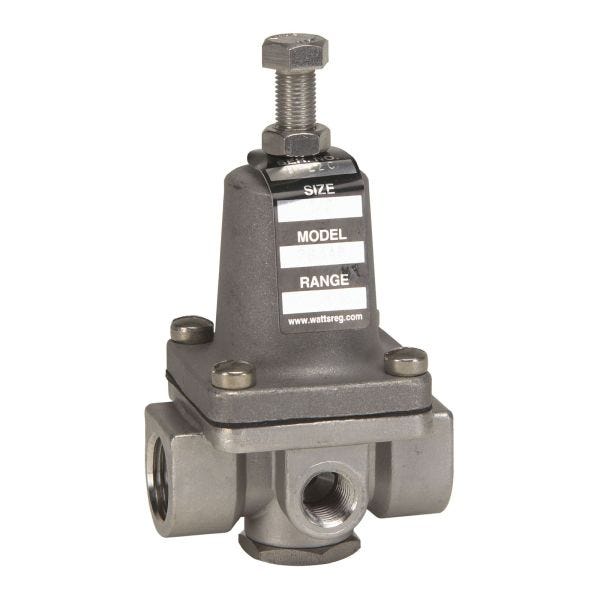

WATTS® Pressure Regulator, 3-Way Compact, Series: SS263AP, 1/2 in Nominal, FNPT, 400 psi, 0 to 140 deg F, Media: Water, T-Handle Actuator, 316 Stainless Steel Body, Buna-N/Stainless Steel/FKM Trim, 4-3/4 in H, Domestic
- Viton stainless steel disc and Viton diaphragm
- Tee handle adjustment
- NPT threaded female inlet and outlet connections
- Temperature range is 33 F to 120 deg F (0.5 C to 49 deg C)
- Maximum working pressure is 400 psi (27.6 bar)
- Rugged investment cast stainless steel body and cage
- Stainless steel adjusting screw
- Oversized orifice
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 1/4 in low pressure gauge port
- 1 to 175 psi reduced pressure range
| Domestic/Import | Domestic |
|---|---|
| Type | 3-Way Compact |
| Nominal Size | 1/2 in |
| Suitable For Use With | Optima® EAF-100 Faucet |
| Commercial/Residential | Commercial |
| Actuator Type | T-Handle |
| Dimensions | 4-3/4 in H |
| Specifications | 90 to 264 VAC/6.75 VDC |
| End Style | FNPT |
| Media | Water |
| Body Material | 316 Stainless Steel |
| Trim Material | Buna-N/Stainless Steel/FKM |
| Temperature Rating | 0 to 140 deg F |
| Series | SS263AP |
| Pressure Rating | 400 psi |
| Brand | Watts |
