Sloan 3019714
BPW-1000-1.28GPF ROYAL FV,BPW
SKU
874156

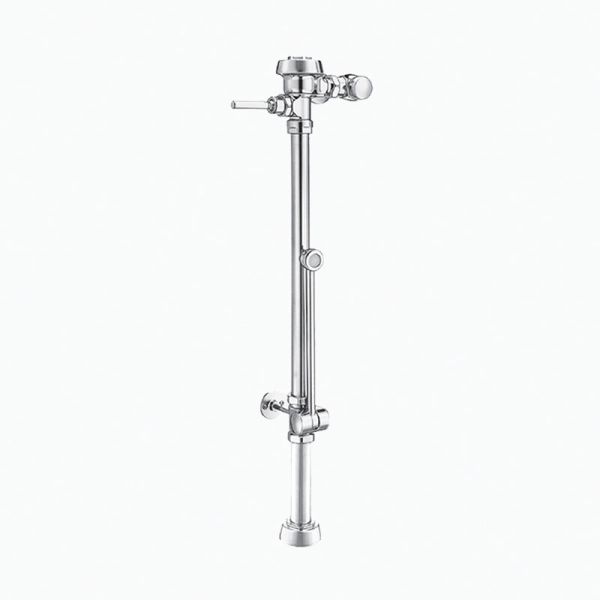

Sloan® Royal® Manual Exposed Flushometer, Single-Flush, Series: BPW 1000, Water Closet Fixture, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 34-3/8 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
- Exposed water closet, diaphragm model flushometer is intended for floor-mounted or wall-hung top spud bowls
- Operates by means of a metal oscillating, non-hold-open handle with a triple seal handle packing to ensure water conservation
- Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units
- Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage
- Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life
- Permex® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Manual exposed bedpan washer flushometer for floor-mount or wall-hung water closets
| Flush Rate | 1.28 gpf |
|---|---|
| Domestic/Import | Domestic |
| Inlet Size | 1 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 1-1/2 in |
| Connection Location | Top Spud |
| Series | BPW 1000 |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open Oscillating |
| Rough-In Size | 34-3/8 in |
| Fixture Type | Water Closet |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
