Sloan 3780046
SLOAN SER 111-1.28G W/ADA HDL
SKU
582568

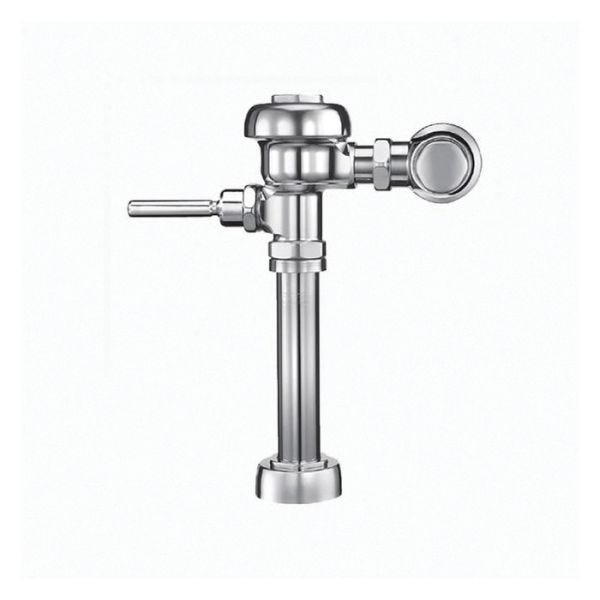

Sloan® Manual Exposed Flushometer, Single-Flush, Series: 111, Water Closet Fixture, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
- Flush volumes start as low as 1.6 gpf/6.0 lpf
- Water conservation is aided by the ADA Compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- adjustable tailpiece accommodate different height requirements
- High chloramine resistant Permex® synthetic rubber diaphragm with linear filtered by-pass and vortex cleansing action
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Exposed water closet flushometer, for floor mounted or wall hung top spud bowls
| Flush Rate | 1.28 gpf |
|---|---|
| Domestic/Import | Domestic |
| Inlet Size | 1 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 1-1/2 in |
| Connection Location | Top Spud |
| Series | 111 |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open Oscillating |
| Rough-In Size | 11-1/2 in |
| Fixture Type | Water Closet |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
