Sloan 3811300
ROYAL 143 1.6GPF FL VALVE10-3/4 L-DIM SLOA#3811300
SKU
490495

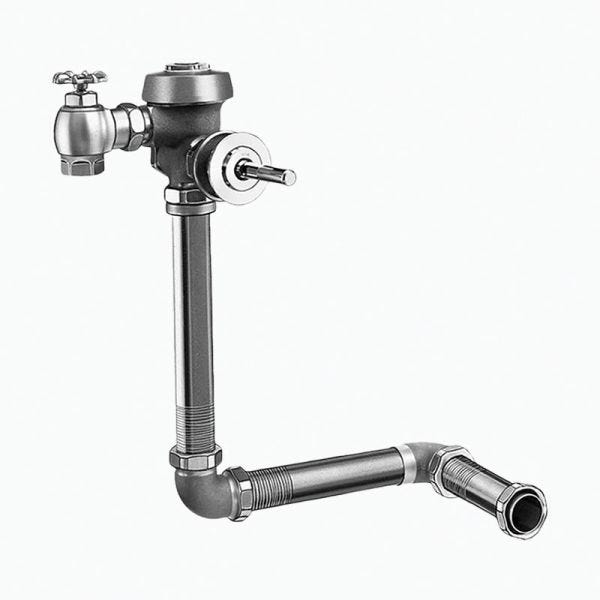

Sloan®, 3811300, Manual Concealed Flushometer, Single-Flush, Series: 143, Water Closet Fixture, 1.6 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 14-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Back Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Domestic
- Flush volumes start as low as 1.28 gpf/4.8 lpf
- Water conservation is aided by the ADA Compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Permex® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Concealed water closet flushometer, for wall hung back spud bowls
| Flush Rate | 1.6 gpf |
|---|---|
| Domestic/Import | Domestic |
| Inlet Size | 1 in IPS |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 1-1/2 in |
| Connection Location | Back Spud |
| Series | 143 |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open Oscillating |
| Rough-In Size | 14-1/2 in |
| Fixture Type | Water Closet |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Rough Brass |
| Brand | Sloan |
