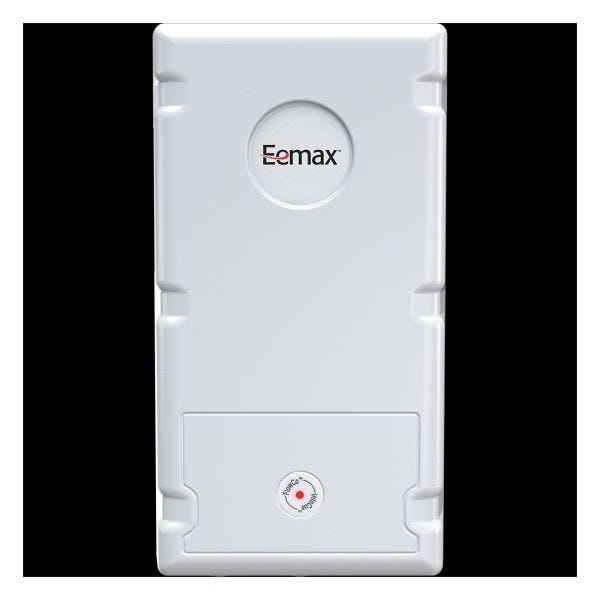

Eemax SPEX4208
EEMAX 208V,4.1KW INST.WTR HTR
SKU
792778
Eemax™ Electric Tankless Water Heater, Multi-Directional Feed, Series: FlowCo™, 208 V, 20 A, 4.1 kW, 1 ph, 2 gpm, 3/8 in Compression Water Connection, Nickel Chrome Heating Element, 0.97, 14 AWG Wire, 30 to 150 psi Dynamic, 90 to 130 deg F, ASME Yes/No: No, ABS, White, 5.25 in W x 3 in D x 9.73 in H, Commercial/Residential/Dual: Commercial, Domestic
- Endless hot water for handwashing and other fixed-flow applications
- InfoCue™ visible LED indicator communicates system status and heater operation feedback
- Self-diagnostics with intelligent controls actively protect heater in installed environment
- SafeStart™ technology engages upon start-up to help avoid dry-fire occurrence
- Mounts in any orientation for a flexible installation
- Compact size
- For use with (1) lavatory faucet, sensor faucet or metering faucet
- Non-thermostatic electric tankless water heater
- Replaceable nickel chrome cartridge insert
- The wetted surface of this product contacted by water contains less than 0.25% lead and meets ANSI/NSF 372
- Without thermostat
- For cold water feed only
| Series | FlowCo™ |
|---|---|
| Phase | 1 ph |
| Heating Element | Nickel Chrome |
| Energy Factor | 0.97 |
| Voltage Rating | 208 V |
| Pressure Rating | 30 to 150 psi Dynamic |
| Wire Size | 14 AWG |
| Type | Multi-Directional Feed |
| Amperage Rating | 20 A |
| Material | ABS |
| Water Connection | 3/8 in Compression |
| Domestic/Import | Domestic |
| Commercial/Residential/Dual | Commercial |
| ASME Yes/No | No |
| Color | White |
| Dimensions | 5.25 in W x 3 in D x 9.73 in H |
| Flow Rate | 2 gpm |
| Temperature Rating | 90 to 130 deg F |
| Power Rating | 4.1 kW |
| Brand | Eemax |
| Voltage | 208V |
