O-Z/Gedney SR-100-875
1-IN .75-.875 CONN
SKU
707831

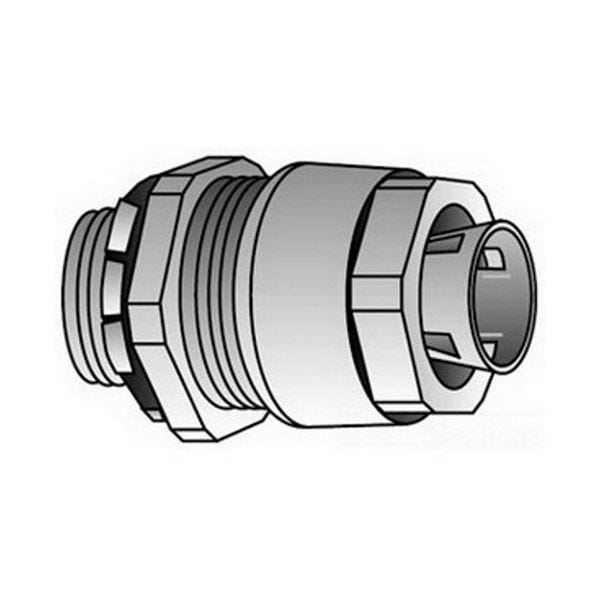

O-Z/Gedney Grip-Tite™ Straight Cord Connector, Strain Relief, Series: SR Series, 1 in Trade, Cable Openings: 3/4 to 7/8 in, Tapered MNPT Connection, Malleable Iron, Zinc Plated Finish, Purple, 90 deg C, 1-3/4 in Dia x 1-1/4 in L Dimensions
- Grip-tite style-2-piece internal design features a nylon gripper for exceptional pullout protection and a neoprene grommet for a moisture-proof seal
- Dual-grommet style for over 1 in diameter cord range
- Removable insert allows for wider range of cable diameters within single fitting
- Liquid tight or oil tight or raintight
- UL Listed NEMA 4, 6 and 12 when installed into a NPT threaded entry or UL Listed conduit hub
- Suitable for NEMA 4 enclosures and other wet locations
- Furnished complete with sealing ring and locknut
- Colored gripper allows for easy identification
| Cable Openings | 3/4 to 7/8 in |
|---|---|
| Color | Purple |
| Temperature Rating | 90 deg C |
| Series | SR Series |
| Connection Type | Tapered MNPT |
| Trade Size | 1 in |
| Dimensions | 1-3/4 in Dia x 1-1/4 in L |
| Material | Malleable Iron |
| Type | Strain Relief |
| Finish | Zinc Plated |
| Brand | Appleton Grp |
